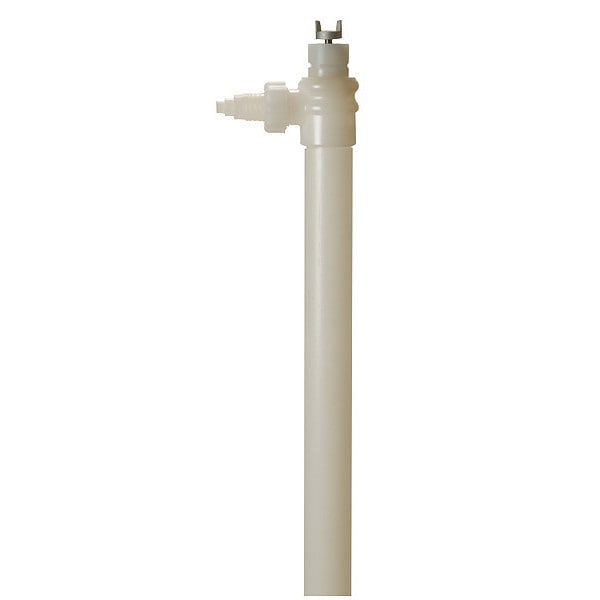

Drum Pump Tube, Suction Tube 40 L

Mfr # DPFV012
Zoro # G1266964

$743.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

For Use With PF
Overall Length 42 in
Self-Priming Yes
Suction Tube Type Constant
Outlet Size 1 in Barb

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Finish Thompson
MFR # DPFV012
Zoro # G1266964
Country of Origin United States
Category Fuel Transfer Accessories

Dimensions

Overall Length	42 in
Outlet Size	1 in Barb
Suction Tube Length	40 in
Discharge Tube Outlet OD Size	1-7/16"
Height	40"
Discharge Tube Outlet ID Size	1"
For Container Size	30 gal, 55 gal

Details

Item	Drum Pump Tube
For Use With	PF
Self-Priming	Yes
Suction Tube Type	Constant
Wetted Materials	PVDF, PTFE, Viton, Alloy 625
Adapter Material	Polypropylene
Max. Viscosity	2000 CPS
Seal Material	FKM
For Media Type	Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Antifreeze, Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate, Ammonium Hydroxide, Bleach, Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene, Automatic Transmission Fluid, Fertilizers, Fungicides, Herbicides
Not Recommended Chemicals	Acetic Acid (Glacial), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Glycerin, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, DEF, E85, Anhydrous Ammonia, Ammonia (Liquids), Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid
Discharge Tube Outlet OD	1 7/16 in
Suction Tube ID	2 in
Discharge Connection Type	Hose Barb
Diesel Exhaust Fluid Compatible	No
Suction Tube OD	1 3/16 in
Max. Fluid Temp.	120 Degrees F
Suction Tube Material	PVDF
Max. Head Pressure	34.6 psi
Food Grade	No
Min. Fluid Temp.	35 Degrees F
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Antifreeze (Coolant), Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate (10%), Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene (50%), Automatic Transmission Fluid, Fertilizers, Fungicides, Herbicides
Max. Flow Rate	40 gpm
For Container Type	Drum, Pail
Max. Head	80 ft
Series	PF
Discharge Tube Outlet ID	1 in
Runs Dry	No
Grease	NT
Gear Lube	NT

Description

Drum Pump Tube, Suction Tube Length 40 in, Pump Package Type Drum Pump Tube, Suction Tube Material PVDF, Suction Tube ID 2 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 7/16 in, Discharge Connection Type Hose Barb, Overall Length 42 in, For Container Size 30 gal, 55 gal, For Container Type Drum, Pail, Max. Flow Rate 40 gpm, Max. Viscosity 2000 CPS, Min. Fluid Temp. 35 Degrees F, Max. Fluid Temp. 120 Degrees F, Max. Head 80 ft
