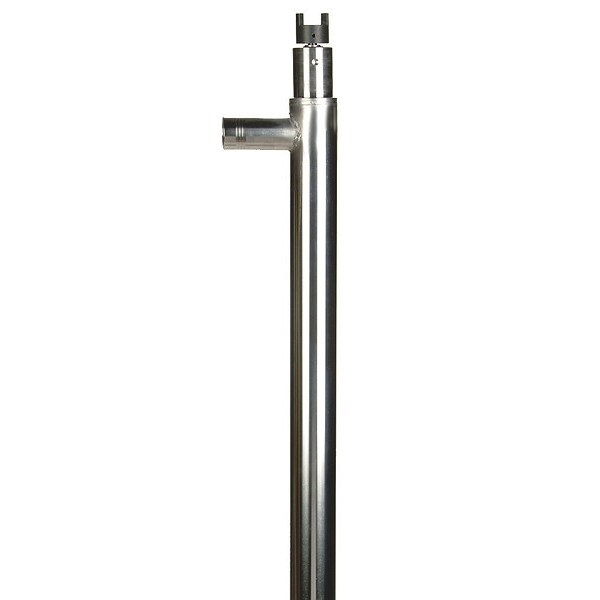

Drum Pump Tube, Suction Tube 40 L

Mfr # DBTS037
Zoro # G1870714

$1,092.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

For Use With BT
Self-Priming Yes
Discharge Tube Outlet ID Size 1-1/2"
Suction Tube Type Intake Tube
Overall Length 42 in

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Finish Thompson
MFR # DBTS037
Zoro # G1870714
Country of Origin United States
Category Fuel Transfer Accessories

Dimensions

Discharge Tube Outlet ID Size	1-1/2"
Overall Length	42 in
Height	40"
Outlet Size	1 1/2 in Barb
Discharge Tube Outlet OD Size	2"
Suction Tube Length	40 in
For Container Size	30 gal, 55 gal

Details

Item	Drum Pump Tube
For Use With	BT
Self-Priming	Yes
Suction Tube Type	Intake Tube
Seal Material	PTFE
Max. Viscosity	15000 CPS
Adapter Material	Polypropylene
Wetted Materials	Stainless Steel, PTFE
Discharge Tube Outlet ID	1 1/2 in
Suction Tube Material	316 Stainless Steel
For Media Type	Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Nitric Acid, Phosphoric Acid (40% Solution), Ketones, Ethanol, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent, Diesel Fuel, Hydraulic Oil, Ethyl Acetate, Biodiesel, Formaldehyde, Ammonium Hydroxide, Hydrazine, Sodium Hydroxide, Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene, E85
Runs Dry	No
Max. Head	200 ft
Suction Tube OD	1 3/16 in
Min. Fluid Temp.	-20 Degrees F
Series	BT
Discharge Connection Type	Hose Barb
Max. Head Pressure	86.5 psi
Suction Tube ID	2 in
Not Recommended Chemicals	Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sodium Hypochlorite/Bleach (to 20%), DEF
For Container Type	Drum, Pail
Max. Fluid Temp.	200 Degrees F
Food Grade	No
Max. Flow Rate	10 gpm
Discharge Tube Outlet OD	2 in
Compatible Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate (10%), Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene (50%), E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid
Diesel Exhaust Fluid Compatible	No
Gear Lube	NT
Grease	NT

Description

Drum Pump Tube, Suction Tube Length 40 in, Pump Package Type Drum Pump Tube, Suction Tube Material 316 Stainless Steel, Suction Tube ID 2 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 1/2 in, Discharge Tube Outlet OD 2 in, Discharge Connection Type Hose Barb, Overall Length 42 in, For Container Size 30 gal, 55 gal, For Container Type Drum, Pail, Max. Flow Rate 10 gpm, Max. Viscosity 15000 CPS, Min. Fluid Temp. -20 Degrees F, Max. Fluid Temp. 200 Degrees F, Max. Head 200 ft
