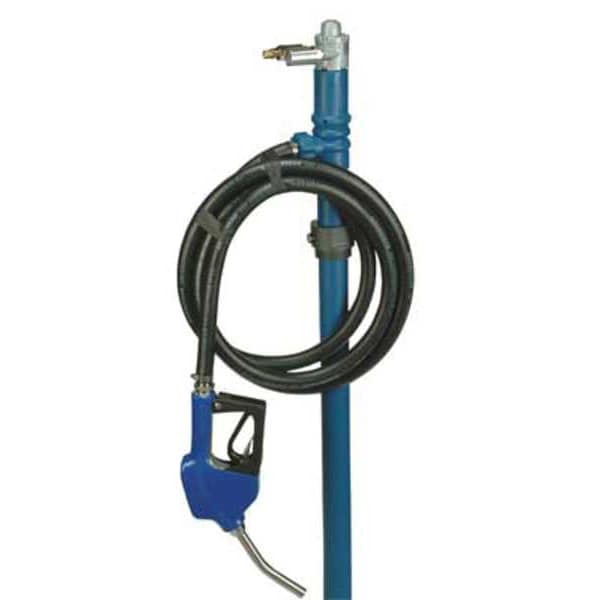

Drum Pump, 1/2 HP, 3/4 In Outlet, 49In OAL

Mfr # PFM-40 & M6 DEF Kit
Zoro # G1915225

$1,001.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Suction Tube Length 40 in
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, DEF, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
For Container Size 55 gal
Max. Flow Rate 22 gpm
Max. Viscosity 300 cps

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Finish Thompson
MFR # PFM-40 & M6 DEF Kit
Zoro # G1915225
Country of Origin United States
Category Hand Drum Pumps

Dimensions

Suction Tube Length	40 in
For Container Size	55 gal
Air Inlet Size	1/4 in MNPT
Discharge Tube Outlet ID Size	3/4"
Outlet Size	3/4" Barb
Height	40"
Discharge Tube Outlet OD Size	1-1/8"
Manufacturers Warranty Length	1 yr.
Inlet Size	2"
Hose Inside Dia.	3/4 in
Hose Length	96 in
Hose Outside Dia.	1 in
Overall Length	48 1/8 in
Height Above Container	8 1/16 in
Air Outlet Size	1/4 in
Bung Connection Dia.	2 in

Details

For Media Type	Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, DEF, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Max. Flow Rate	22 gpm
Max. Viscosity	300 cps
Wetted Materials	316 Stainless Steel, EPDM, FKM, Polypropylene, PTFE, PVDF
Suction Tube ID	2 in
Max. Fluid Temp.	160 Degrees F
Food Grade	No
Discharge Tube Outlet ID	3/4 in
Includes	Clamp, Hose, Motor, Pump, S.S Automatic Nozzle, Sealed Adapter
Suction Tube OD	2 in
Metered	No
Discharge Tube Outlet OD	1 1/8 in
Runs Dry	No
Diesel Exhaust Fluid Compatible	Yes
Includes Suction Tube	Yes
Max. Head	10 to 38 ft.
Max. Flow GPM	22 gpm
Max. Air Inlet (PSI)	16
Max. GPM for Water	10
Agency Compliance	ISO 22241-3 (Purity Standard)
Max. GPM for Oil	17
Adapter Type	2" Buttress Thread
For Use With	Diesel Exhaust Fluid and Other Compatible Chemicals
Item	Air Operated Drum Pump
Discharge Tubing Material	EPDM
Motor Type	Air
Housing Material	Polypropylene
Self-Priming	Yes
Adapter Material	PVC
Max. Liquid Temp.	160 Degrees F
GPM	10
Thermal Protection	No
Seal Material	FKM
Motor RPM	9,000 RPM
Suction Tube Material	Polypropylene
Housing Material - Pumps	Polypropylene
Series	PF
Variable Speed	Yes
Hose Tube Material	EPDM
Noise Level	78 db
Pump Connection OD	2 in
Motor HP	1/2 hp
Nozzle Material	316 Stainless Steel, FKM, PP
Power Source	Air
Includes Nozzle	Yes
Max. Head Pressure	16.5 psi
Discharge Connection Type	Hose Barb
Includes Bung Adapter	Yes
Min. Air Pressure	80 psi
Includes Discharge Hose	Yes
Not Recommended Chemicals	Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Nozzle Operation	Automatic
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, DEF, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)
Duty Cycle	Continuous
Pump Connection ID	2 in
Min. Fluid Temp.	35 Degrees F
Includes Spout	No
For Container Type	Drum
Max. Air Pressure	80 psi
Max. Oil Flow	17 gpm
Explosion Proof	Yes
Adapter Connection Type	Buttress
Gear Lube	NT
Max. Head - Pumps	38 ft
Grease	NT

Description

Air Operated Drum Pump, Max. Air Pressure 80 psi, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 48 1/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Bung Connection Dia. 2 in, Hose Length 96 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 db, Max. Viscosity 300 cps, Adapter Connection Type Buttress, Duty Cycle Continuous, Includes Suction Tube Yes

Restrictions

*** This is a restricted item. It cannot be used in the USA for potable water applications.
