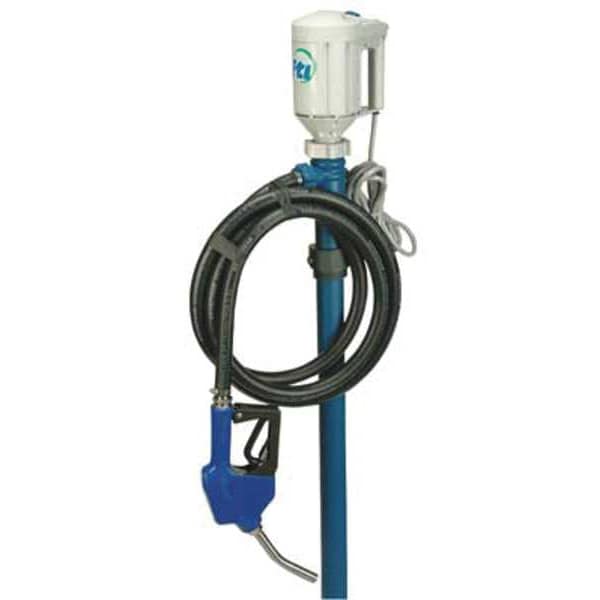

Drum Pump, 115VAC, 4/5 HP, 60 Hz

Mfr # PFM-48 & M3V DEF Kit
Zoro # G2591276

$1,119.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

For Use With Diesel Exhaust Fluid and Other Compatible Chemicals
Housing Material Polypropylene
Includes 3/4 in Hose Barb and Nut, Clamp, Hose, Motor, Pump, S.S Automatic Nozzle, Sealed Adapter
Inlet Size 2"
Motor Type Universal AC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Finish Thompson
MFR # PFM-48 & M3V DEF Kit
Zoro # G2591276
Country of Origin United States
Category Electric Drum Pumps

Dimensions

Inlet Size	2"
Overall Length	60 in
Outlet Size	3/4" Barb
Suction Tube Length	48 in
Manufacturers Warranty Length	1 yr.
Suction Tube Outlet O.D. Size	2"
Height	48"
Discharge Tube Length	8 ft.
Adapter Dia.	2"
Discharge Tube Outlet ID Size	3/4"
Discharge Tube Outlet OD Size	1-1/8"
Cord Length	12 ft
Bung Connection Dia.	2 in
Hose Inside Dia.	3/4 in
For Container Size	275 gal
Hose Outside Dia.	1 in
Hose Length	96 in
Height Above Container	15 3/8 in

Details

For Use With	Diesel Exhaust Fluid and Other Compatible Chemicals
Housing Material	Polypropylene
Includes	3/4 in Hose Barb and Nut, Clamp, Hose, Motor, Pump, S.S Automatic Nozzle, Sealed Adapter
Motor Type	Universal AC
Voltage	115VAC
Action Type	Piston
Max. Flow GPM	40 gpm
Application	To Transfer Acids, Bases, Solvents, Water Treatment Chemicals, Cleaners, Plating Solutions, Kidney Dialysis Solutions, DEF/AdBlue (Diesel Exhaust Fluid)
Max. GPM for Water	10
DEF Compatible	Yes
Self-Priming	Yes
Max. Head	10 to 80 ft.
Agency Compliance	CSA, ISO 22241-3 (Purity Standard)
Max. Pressure	35 psi
Discharge Tubing Material	EPDM
Standards	CSA, ISO 22241-3 (Purity Standard)
RPM	3500 to 10,000
Adapter Type	Bung
Wetted Materials	316 Stainless Steel and EPDM, FKM, Polypropylene, PTFE, PVDF
Max. Viscosity	500 cps
Max. Liquid Temp.	160 Degrees F
Phase	1
Suction Tube Type	Intake Tube
GPM	10
Max. GPM for Oil	26
Hz	60
Adapter Material	PVC
pH Range	6 to 10
Type	Motor and Tube
Motor Enclosure	ODP
Seal Material	Fluoroelastomer
HP	4/5
Item	Electric Operated Drum Pump
Metered	No
Pump Body Material	Polypropylene
Max. Temp.	160 Degrees F
Includes Bung Adapter	Yes
Discharge Connection Type	Hose Barb
Discharge Tube Outlet ID	3/4 in
Full Load Amps	5.6 A
For Container Type	Tote
Min. Fluid Temp.	35 Degrees F
Pump Connection ID	2 in
Noise Level	79 db
Suction Tube Material	Polypropylene
Series	PF
Housing Material - Pumps	Polypropylene
Includes Discharge Hose	Yes
Max. Flow Rate	10 gpm
Duty Cycle	Continuous
Motor HP	4/5 hp
Hose Tube Material	EPDM
Max. Head - Pumps	80 ft
Suction Tube OD	2 in
Power Source	Electric
Pump Connection OD	2 in
Thermal Protection	No
Includes Nozzle	Yes
Frequency (Hz)	60 Hz
Nozzle Operation	Automatic
Plug Type	NEMA 5-15
Runs Dry	No
Motor RPM	3500 to 10,000
Discharge Tube Outlet OD	1 in
Max. Fluid Temp.	160 Degrees F
Variable Speed	Yes
Max. Head Pressure	35 psi
Number of Phases	1
Food Grade	No
Nozzle Material	FKM, Polypropylene, Stainless Steel
Not Recommended Chemicals	Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
For Media Type	Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, DEF, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, DEF, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)
Includes Suction Tube	Yes
Pump Connection Type	Smooth Bore
Suction Tube ID	2 in
Diesel Exhaust Fluid Compatible	Yes
Explosion Proof	No
Adapter Connection Type	Buttress
Max. Outlet Pressure	35 psi
Rated Voltage	115V AC
Gear Lube	NT
Grease	NT

Description

Electric Operated Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 35 psi, Max. Outlet Pressure 35 psi, For Use With Diesel Exhaust Fluid and Other Compatible Chemicals, Rated Voltage 115V AC, Plug Type NEMA 5-15, Pump Connection ID 2 in, Suction Tube OD 2 in, Hose Length 96 in, Suction Tube Length 48 in, Cord Length 12 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection No, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed Yes
