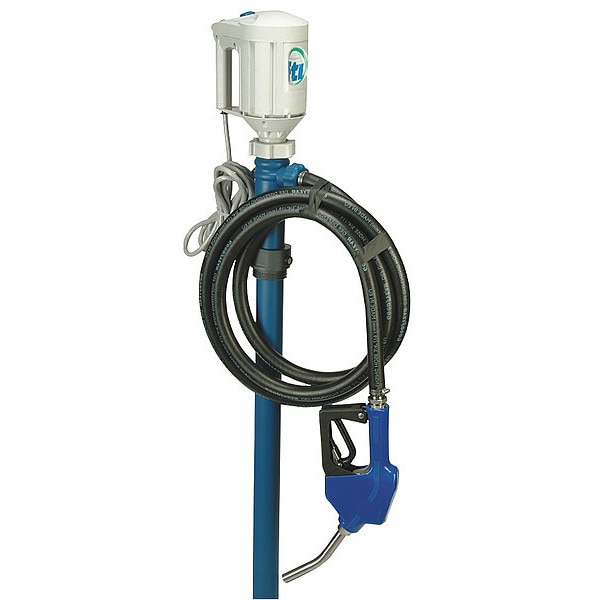

Drum Pump, 115VAC, 1/3 HP, 60 Hz

Mfr # EFP-54/S1
Zoro # G7045586

$1,131.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

For Use With Diesel Exhaust Fluid
Housing Material Polypropylene
Includes Adapter and Nozzle, Clamp, Hose, Motor, Pump
Inlet Size 1-1/4"
Motor Type Universal AC/DC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Finish Thompson
MFR # EFP-54/S1
Zoro # G7045586
Country of Origin United States
Category Electric Drum Pumps

Dimensions

Inlet Size	1-1/4"
Hose Length	96 in
Manufacturers Warranty Length	1 yr.
Discharge Tube Outlet OD Size	1-1/8"
Overall Length	48 5/8 in
Suction Tube Length	54 in
Discharge Tube Outlet ID Size	3/4"
Outlet Size	3/4" Barb
Suction Tube Outlet O.D. Size	1-1/4"
Discharge Tube Length	8 ft.
Hose Outside Dia.	1 in
For Container Size	275 gal
Cord Length	12 ft
Bung Connection Dia.	2 in
Height Above Container	8 5/8 in
Hose Inside Dia.	3/4 in

Details

For Use With	Diesel Exhaust Fluid
Housing Material	Polypropylene
Includes	Adapter and Nozzle, Clamp, Hose, Motor, Pump
Motor Type	Universal AC/DC
Voltage	115VAC
Action Type	Piston
Max. Flow GPM	17 gpm
Application	Light Acids and Bases, Solvents, Plating, Solutions, Sodium Hypochlorite, Cleaners, Coolants, Diesel Exhaust Fluid
Wetted Materials	316 Stainless Steel, FKM, Polypropylene, PTFE
GPM	17
Max. Pressure	8.7 psi
Standards	CSA Certified
Hose Material	EPDM
Phase	1
Max. Head	20 ft.
Motor Enclosure	ODP
Discharge Tubing Material	EPDM
DEF Compatible	Yes
Suction Tube Type	Constant
Hz	60
Item	Electric Operated Drum Pump
Metered	No
Max. Liquid Temp.	150 Degrees F
Type	Motor and Tube
pH Range	6 to 10
Seal Material	FKM
Adapter Type	Sealed
Pump Body Material	Polypropylene
Max. GPM for Water	17
Max. Viscosity	300 cps
HP	1/3
Max. Temp.	150 Degrees F
RPM	8000 to 14,000
Adapter Material	PVC
Agency Compliance	CSA, ISO 22241-3 (Purity Standard)
Max. GPM for Oil	7 @ 100 cps
Frequency (Hz)	60 Hz
Pump Connection OD	2 in
Discharge Tube Outlet OD	1 in
Power Source	Electric
Motor RPM	8000 to 14,000
Hose Tube Material	EPDM
Includes Bung Adapter	Yes
Includes Suction Tube	Yes
Discharge Tube Outlet ID	3/4 in
Max. Head - Pumps	20 ft
Noise Level	74 db
Food Grade	No
Min. Fluid Temp.	0 Degrees F
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)
Full Load Amps	2.0 A
Nozzle Operation	Automatic
Variable Speed	Yes
Discharge Connection Type	Hose Barb
Runs Dry	No
Pump Connection ID	1 1/4 in
Motor HP	1/3 hp
Plug Type	NEMA 5-15
Self-Priming	Yes
Not Recommended Chemicals	Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Diesel Exhaust Fluid Compatible	No
Pump Connection Type	Smooth Bore
Includes Discharge Hose	Yes
Includes Nozzle	Yes
Series	EF
Duty Cycle	Continuous
Thermal Protection	No
Max. Fluid Temp.	150 Degrees F
For Media Type	Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Max. Flow Rate	17 gpm
Number of Phases	1
Housing Material - Pumps	Polypropylene
For Container Type	Tote
Suction Tube ID	1 1/4 in
Suction Tube Material	Polypropylene
Max. Head Pressure	8.7 psi
Suction Tube OD	1 1/4 in
Nozzle Material	FKM, Polypropylene, Stainless Steel
Gear Lube	NT
Adapter Connection Type	Buttress
Max. Outlet Pressure	8.7 psi
Rated Voltage	115V AC
Grease	NT
Explosion Proof	No

Description

Electric Operated Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 8.7 psi, Max. Outlet Pressure 8.7 psi, For Use With Diesel Exhaust Fluid, Rated Voltage 115V AC, Plug Type NEMA 5-15, Pump Connection ID 1 1/4 in, Suction Tube OD 1 1/4 in, Hose Length 96 in, Suction Tube Length 54 in, Cord Length 12 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection No, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed Yes, Includes Discharge Hose Yes
