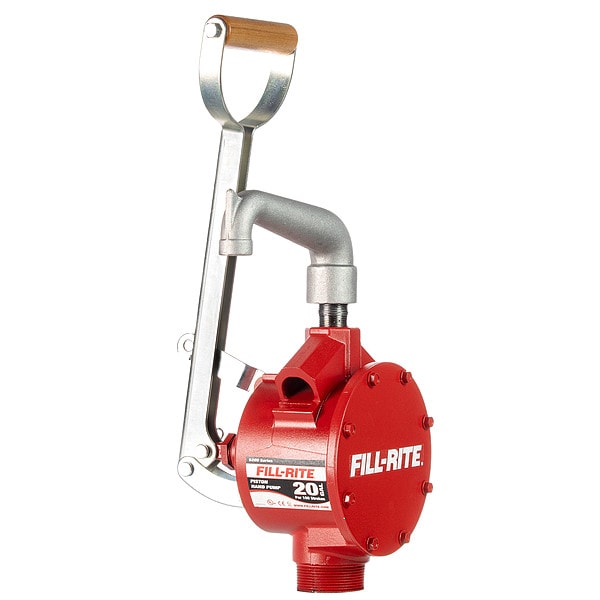

Hand Operated Pump, Aluminum, 3/4In FNPT

Mfr # FR151
Zoro # G4085015

$246.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Suction Tube Length 20 in to 34 1/2 in
Action Type Lever
For Media Type Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
For Container Size 55 gal
Max. Flow Rate 20 gal per 100 strokes

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fill-Rite
MFR # FR151
Zoro # G4085015
UPC #
089404004258
Country of Origin United States
Category Hand Drum Pumps

Dimensions

Suction Tube Length	20 in to 34 1/2 in
For Container Size	55 gal
Overall Length	34-3/4"
Outlet Size	3/4" FNPT
Manufacturers Warranty Length	2 yr.
Inlet Size	1" NPT
Adapter Dia.	2"
Spout Length	3 in
Height Above Container	19 1/2 in
Spout Connection Size	3/4 in
Bung Connection Dia.	2 in

Details

Action Type	Lever
For Media Type	Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Max. Flow Rate	20 gal per 100 strokes
Max. Viscosity	1,500 SUS
Wetted Materials	301 Stainless Steel, Aluminum, Buna-N, PTFE, Zinc Plated Steel
Suction Tube ID	1 in
Food Grade	No
Discharge Tube Outlet ID	3/4 in
Max. Fluid Temp.	120 Degrees F
Includes	Anti-Siphon Valve, Pail Spout, Telescoping Steel Suction Tube
Suction Tube OD	1 1/8 in
Metered	No
Discharge Tube Outlet OD	7/8 in
Runs Dry	Yes
Diesel Exhaust Fluid Compatible	No
Includes Suction Tube	Yes
Adapter Type	Bung
GPM	20
Standards	UL Listed
Type	Piston Action
Features	Replaceable Stainless Steel Sleeve Lining, Self-Priming
Application	For Gasoline, Diesel, Oils up to SAE 40, Antifreeze and Kerosene
Item	Hand Operated Drum Pump
Max. Pressure	50 psi
Max. Temp.	120 Degrees F
Max. Head	115 ft.
pH Range	5 to 7
Adapter Material	Aluminum
Pump Body Material	Aluminum
Agency Compliance	UL Listed
For Use With	For Gasoline, Diesel, Oils up to SAE 40, Antifreeze and Kerosene
Max. Liquid Temp.	120 Degrees F
Max. Flow GPM	20 gpm
Housing Material	Aluminum
Piston Material	Aluminum
Suction Tube Material	Steel
Seal Material	Buna-N
Self-Priming	Yes
Includes Spout	Yes
Spout Material	Aluminum
Includes Discharge Hose	No
Max. Head Pressure	50 psi
Includes Bung Adapter	Yes
Housing Material - Pumps	Aluminum
Compatible Chemicals	Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Discharge Connection Type	FNPT
Includes Nozzle	No
Pump Connection ID	2 in
Power Source	Hand Operated
Max. Head - Pumps	6 ft
Series	5200 SERIES, PISTON
Pump Connection OD	2 1/8 in
Min. Operating Temp.	0 Degrees F
Max. Oil Flow	25 oz per stroke
For Container Type	Drum
Not Recommended Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Max. Outlet Pressure	50 psi
Grease	NT
Adapter Connection Type	MNPT
Gear Lube	NT
Mount Type	Bung

Description

Hand Operated Drum Pump, Max. Outlet Pressure 50 psi, Pump Connection OD 2 1/8 in, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Piston Material Aluminum, Features Replaceable Stainless Steel Sleeve Lining, Self-Priming, Seal Material Buna-N, For Use With For Gasoline, Diesel, Oils up to SAE 40, Antifreeze and Kerosene, Adapter Connection Type MNPT, Discharge Connection Type FNPT, For Container Type Drum
