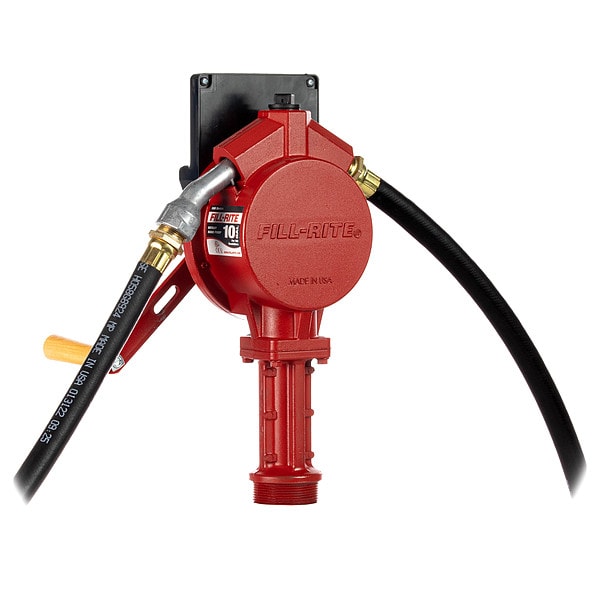

Hand Drum Pump, Rotary, 3/4In FNPT

Mfr # FR112AC
Zoro # G2057352

$329.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Suction Tube Length 20 in to 34 1/2 in
Action Type Rotary
For Media Type Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
For Container Size 55 gal
Max. Flow Rate 10 gal per 100 revolutions

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fill-Rite
MFR # FR112AC
Zoro # G2057352
UPC #
089404002902
Country of Origin United States
Category Hand Drum Pumps

Dimensions

Suction Tube Length	20 in to 34 1/2 in
For Container Size	55 gal
Outlet Size	3/4" FNPT
Width	6-3/8"
Overall Length	13"
Manufacturers Warranty Length	2 yr.
Overall Width	11"
Hose Dia.	5/8"
Height	13-1/4"
Hose Length	8 ft
Inlet Size	1"
Overall Height	18"
Hose Inside Dia.	5/8 in
Bung Connection Dia.	2 in
Height Above Container	14 4/5 in
Hose Outside Dia.	7/8 in
Spout Connection Size	3/4 in

Details

Action Type	Rotary
For Media Type	Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Max. Flow Rate	10 gal per 100 revolutions
Max. Viscosity	1,500 SUS
Wetted Materials	301 Stainless Steel, Buna-N, Cast Iron, Zinc Plated Steel
Suction Tube ID	1 in
Discharge Tube Outlet ID	3/4 in
Food Grade	No
Max. Fluid Temp.	120 Degrees F
Includes	Check Valve, Pressure Relief Valve, Strainer
Suction Tube OD	1 1/8 in
Metered	Yes
Discharge Tube Outlet OD	7/8 in
Diesel Exhaust Fluid Compatible	No
Runs Dry	Yes
Includes Suction Tube	Yes
Voltage	115VAC and 230VAC
Seal Type	Mechanical
Features	3/4 in x 8 ft Hose, Gal. Counter, Non Sparking Hose End Spout, Suction Pipe
Housing Material	Cast iron
GPM	10
RPM	1725 and 1425
Bearing Type	Permanently Lubricated Sealed Ball
Type	Rotary Action
Agency Compliance	UL Listed
Nozzle Type	Manual
Item	Hand Operated Drum Pump
Duty Cycle	Intermittent
For Use With	Fuel and Light Oils
Pump Design	Rotary Vane
Standards	UL, cUL Listed Pump
Self-Priming	Yes
Bypass Valve	Internal
Nozzle Material	Aluminum
Application	Fuel and Light Oils
Seal Material	Buna-N
Suction Tube Material	Steel
Adapter Material	Cast Iron
Series	100 SERIES, ROTARY PUMPS
Discharge Connection Type	FNPT
Includes Nozzle	Yes
Hose Cover Material	Neoprene
Includes Discharge Hose	Yes
Spout Material	Aluminum
Hose Tube Material	Nitrile
Pump Connection ID	2 in
Housing Material - Pumps	Aluminum
Pump Connection OD	2 1/8 in
Compatible Chemicals	Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Nozzle Operation	Manual
Max. Oil Flow	13 oz per stroke
Power Source	Hand Operated
For Container Type	Drum
Includes Spout	No
Not Recommended Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Max. Head - Pumps	6 ft
Includes Bung Adapter	Yes
Max. Head Pressure	50 psi
Min. Operating Temp.	0 Degrees F
Max. Outlet Pressure	50 psi
Adapter Connection Type	MNPT
Gear Lube	NT
Grease	NT
Mount Type	Bung

Description

Hand Operated Drum Pump, Max. Outlet Pressure 50 psi, Pump Connection OD 2 1/8 in, Spout Connection Size 3/4 in, Self-Priming Yes, Metered Yes, Hose Length 8 ft, Includes Discharge Hose Yes, Features 3/4 in x 8 ft Hose, Gal. Counter, Non Sparking Hose End Spout, Suction Pipe, Seal Material Buna-N, For Use With Fuel and Light Oils, Adapter Connection Type MNPT, Discharge Connection Type FNPT, For Container Type Drum, Hose Cover Material Neoprene, Includes Bung Adapter Yes, Includes Nozzle Yes
