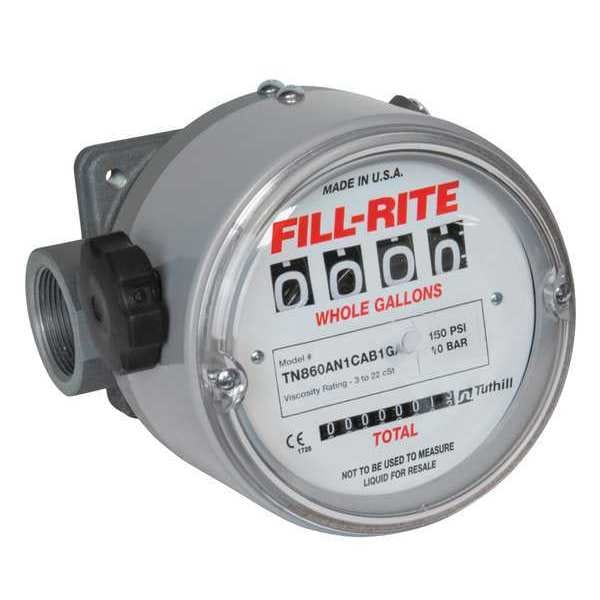

Flowmeter, 150 PSI, 1-1/2 in., Mechanical

Mfr # TN860AN1CAB2GAC
Zoro # G4315669

$1,064.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Housing Material Aluminum
Type Liquid
For Pipe Size 1 1/2 in
Flow Material ALS, Bio Diesel, Fuel Oil No. 2, Kerosene, Non-Potable Water
Connection Size 1 1/2 in

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fill-Rite
MFR # TN860AN1CAB2GAC
Zoro # G4315669
UPC #
089404217269
Country of Origin United States
Category Flowmeters

Dimensions

For Pipe Size	1 1/2 in
Connection Size	1 1/2 in
Length (In.)	8"
Height (In.)	11
Width (In.)	7"
Width	7 in
Length	8 in
Manufacturers Warranty Length	2 yr
Connection Size (In.)	1-1/2 NPT
Height	11 in
Manufacturer Warranty Length	2 yr
Overall Length	5 in
Overall Height	11 in
Overall Width	7 in

Details

Item	Mechanical Flowmeter
Housing Material	Aluminum
Type	Liquid
Flow Material	ALS, Bio Diesel, Fuel Oil No. 2, Kerosene, Non-Potable Water
Connection Type	FNPT
Max. Pressure	150 psi
Max. Viscosity	100 SUS
Wetted Materials	Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Flow Range	6 to 60 gpm
Fitting	Brass
Fluid Temp. Range	-40 Degrees to 140 Degrees F
Pressure Drop - 50% Flow (PSI)	5.0 psi
Master Totalizer	999,999 gal
Max. Temp. (F)	130
GPM Max.	60 gpm
Seal Material	Buna-N
Accuracy (%)	+/-1
O-Ring	Buna
Resetable Cumulative Totalizer	9,999 gal
Flow Range (GPM)	6 to 60
Application	Agriculture, Construction, Industrial, Mining, Municipalities
Flow Range @ GPH	360 to 3600
Agency Compliance	UL Listed
Chamber Material	Polypropylene
Max. Pressure (PSI)	150
Flow Range @ GPM/LPM	6 to 60 / 23 to 227
Display	Mechanical
Thread	NPT
Pressure Drop - 100% Flow (PSI)	22.0 psi
Max. Viscosity (SSU)	100
Standards	CE Certified
Output Type	Standard Frequency Pulse
Display Type	Mechanical
Shaft Material	Stainless Steel
Product Type	4-Digit Mechanical Fuel Transfer Meter
Media Temperature - Maximum	140 Degrees F
Wetted Material	Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Flowmeter Type	Paddlewheel
Operating Pressure - Maximum	150 psi
Accuracy	+/-2%
Compatible Flow Material	Gasoline, Water
Flow Rate - Maximum	60 gpm
Media Temperature - Minimum	-40 Degrees F
Unit Of Measure	Liters
O-Ring Material	Buna-N
Rotor Material	PPS
Includes Totalizer	Yes
Includes Pressure Gauge	No
Viscosity - Maximum	100 SUS
Flow Rate - Minimum	6 gpm
Includes Flow Rate Adjustment Knob	Yes
Pulse Rate	10 pulses/gal
Mounting Orientation	Universal

Description

Flowmeter, Liquid, GPM Max. 60, Max. Pressure (PSI) 150, Connection Size (In.) 1-1/2 NPT, Max. Temp. (F) 130, Length (In.) 8, Width (In.) 7, Height (In.) 11, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 60 gpm, Display Mechanical, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 100 SSU, Max. Viscosity (SSU) 100, For Pipe Size 1 In.
