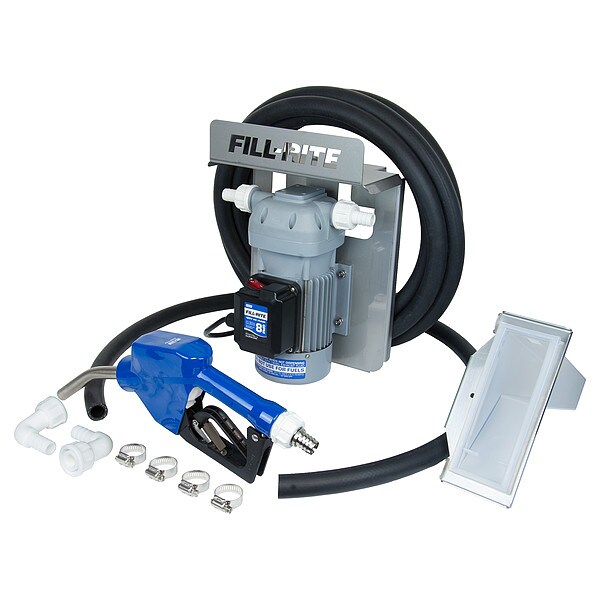

Electric Operated Drum Pump, 120VAC, 8 Max. Flow Rate , 1/4 HP, Stainless steel, 1" BSPP Inlet

Mfr # DF120CAN520
Zoro # G5515610

$749.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Voltage 120VAC
Application Dispensing Diesel Fuel
HP 1/4
Housing Material Stainless steel
GPM 8

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fill-Rite
MFR # DF120CAN520
Zoro # G5515610
UPC #
089404245811
Country of Origin United States
Category Fuel Transfer Pumps

Dimensions

Inlet Size	1" BSPP
Discharge Tube Length	20 ft.
Hose Dia.	3/4"
Overall Width	7-13/64"
Suction Tube Length	60 in
Overall Height	6-45/64"
Overall Length	15 1/4 in
Cord Length	72 in
Outlet Size	3/4"
Hose Length	20 ft
Manufacturers Warranty Length	2 yr.
Hose Outside Dia.	1 in
Spout Length	16 in
Height Above Container	2 1/2 in
For Container Size	55 gal, 275 gal, 330 gal
Hose Inside Dia.	3/4 in
Spout Discharge Size	1/2 in

Details

Voltage	120VAC
Application	Dispensing Diesel Fuel
HP	1/4
Housing Material	Stainless steel
GPM	8
Seal Material	EPDM
RPM	3400
Pump Design	Rugged Multi-Diaphragm
Self-Priming	Yes
Seal Type	O-ring
Max. Viscosity	40 cps
Item	Electric Operated Drum Pump
Suction Lift	6 ft.
Phase	1
Nozzle Material	Poly, Stainless Steel
Amps	2.4
Max. Pressure	38 psi
Max. Specific Gravity	1.1
Max. Head	16 ft.
Motor Enclosure	TEFC
Max. Temp.	140 Degrees F
Features	Integral Pulsation Dampener, Smooth Flow
Pump Body Material	Stainless Steel
Motor Type	Capacitor Start
Includes	(2) 1 in BSPP x 3/4 in Hose Barb 90 Degrees Elbows, (2) 1 in BSPP x 3/4 in Hose Barb Straight Fittings, (4) Worm Gear Hose Clamps, Nozzle Boot with Bracket
Duty	Intermittent
Suction Tube Type	Flexible Hose
Wetted Materials	EPDM, Nylon, Santoprene, Stainless Steel
Max. GPM for Water	8
Hz	60
Duty Cycle	Intermittent
Bypass Valve	Internal
For Use With	Diesel Exhaust Fluid
Gasket Material	EPDM
Inlet	3/4" MBSPP
Metered	No
Hose Material	EPDM
Shaft Material	Stainless Steel
Nozzle Type	Automatic
Bearing Type	Ball
Adapter Type	3/4" HB
Pressure Range	38 psi
Max. Liquid Temp.	140 Degrees F
Adapter Material	Nylon
Agency Compliance	ETL
Includes Suction Tube	Yes
Variable Speed	No
Not Recommended Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Hose Cover Material	EPDM
For Media Type	DEF
Full Load Amps	2.4 A
Includes Spout	Yes
Max. Head - Pumps	30 ft
Suction Tube ID	3/4 in
Motor HP	1/4 hp
Spout Connection Type	BSP
Nozzle Operation	Automatic
Housing Material - Pumps	Polypropylene
Motor RPM	3,400 RPM
Frequency (Hz)	60 Hz
Compatible Chemicals	DEF
Max. Fluid Temp.	120 Degrees F
Power Source	Electric
Number of Phases	1
Plug Type	Type B
Discharge Tube Outlet OD	1 in
Includes Bung Adapter	No
Suction Tube Material	EPDM
Noise Level	80 db
Pump Connection ID	3/4 in
Max. Head Pressure	38 psi
Diesel Exhaust Fluid Compatible	Yes
Pump Connection OD	1 in
Min. Fluid Temp.	15 Degrees F
For Container Type	Drum, Tote
Includes Discharge Hose	Yes
Suction Tube OD	1 in
Food Grade	No
Runs Dry	Yes
Spout Material	Stainless Steel
Hose Tube Material	EPDM
Max. Flow Rate	10 gpm
Discharge Connection Type	BSP
Includes Nozzle	Yes
Pump Connection Type	BSP
Discharge Tube Outlet ID	3/4 in
Max. Outlet Pressure	38 psi
Gear Lube	NT
Grease	NT
Rated Voltage	115V AC

Description

Electric Operated Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 38 psi, Max. Outlet Pressure 38 psi, For Use With Diesel Exhaust Fluid, Rated Voltage 115V AC, Plug Type Type B, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 20 ft, Suction Tube Length 60 in, Cord Length 72 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Automatic, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes

Restrictions

*** This is a restricted item. It cannot be used in the USA for potable water applications.
