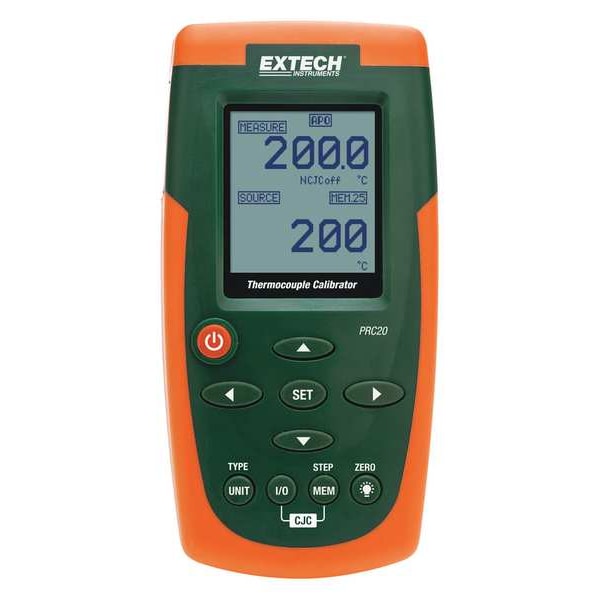

Temperature Calibrator, to2498 Degrees F

Mfr # PRC20
Zoro # G5076583

$589.00

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Promotion Restriction Not eligible for promotion
Voltage Measurement Range -10mV to 60mV DC
Accuracy +/-(0.05% + 1.8 Degrees F)
Thermocouple Type J, K, T, C, E, N, R and S
Source Voltage 55 mV DC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Extech
MFR # PRC20
Zoro # G5076583
UPC #
793950710210
Country of Origin Taiwan, Province of China
Category Process Calibrators

Dimensions

Manufacturers Warranty Length	1 yr
Manufacturer Warranty Length	1 yr

Details

Promotion Restriction	Not eligible for promotion
Item	Handheld Temperature Calibrator
Voltage Measurement Range	-10mV to 60mV DC
Accuracy	+/-(0.05% + 1.8 Degrees F)
Thermocouple Type	J, K, T, C, E, N, R and S
Source Voltage	55 mV DC
Measurement Functions	Temperature, Voltage
Thermocouple Temperature Range	-58 Degrees to 2498 Degrees F (Dependent on Thermocouple Type)
Includes	100 to 240V Universal AC Adapter, Batteries, Calibration Cables, Carrying Case, Instruction
Powered By	(6) AA Batteries or 100 to 240V Universal AC Adapter
Display	LCD
Includes NIST-Traceable Certificate	No
For Thermocouple Type	Type C, Type E, Type J, Type K, Type N, Type R, Type S, Type T
Sensor Maximum Temperature F	3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
Data Hold	No
Temperature Accuracy	+/-0.05% +2 Degrees F/1 Degrees C
Display Type	LCD
Temperature Range	-58 Degrees to 2498 Degrees F/-50 Degrees to 1,750 Degrees C
Number of Digits	4
Thermocouple Temperature Range F	-58 Degrees to 2,498 Degrees F
Accuracy - Measure	0.05% Reading +/-1 Degrees
Probe Connection Type	Mini Thermocouple Connector, Standard Banana I/O Ports
Thermocouple Temperature Range C	-50 Degrees to 1,750 Degrees C
Sensor Temperature Range	-184 Degrees to 752 Degrees F/-120 Degrees to 400 Degrees C (Type T), -58 Degrees to 1,382 Degrees F/-50 Degrees to 750 Degrees C (Type E), -58 Degrees to 1,832 Degrees F/-50 Degrees to 1,000 Degrees C (Type J), -58 Degrees to 2,498 Degrees F/-50 Degrees to 1,370 Degrees C (Type K), -58 Degrees to 2,732 Degrees F/-50 Degrees to 1,300 Degrees C (Type N), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type C), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type R), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type S)
Sensor Minimum Temperature F	32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
Auto Power Off	Yes
Sensor Minimum Temperature C	0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
Sensor Maximum Temperature C	1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
Millivolt Accuracy	10uV +/-1 Digit
Display Functions	Degrees C/ Degrees F Switchable, Datalogging
Accuracy - Source	0.05% Reading +/-1 Degrees
Sensor Type	Thermocouple
Millivolt Range	-10 to 60mV DC
Sensor Maximum Temperature °C	1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
Sensor Minimum Temperature °F	32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
Sensor Minimum Temperature °C	0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
Sensor Maximum Temperature °F	3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)

Description

Handheld Temperature Calibrator, Sensor Type Thermocouple, Display Functions Degrees C/ Degrees F Switchable, Datalogging, Temperature Accuracy +/-0.05 Percent +2 Degrees F/1 Degrees C, -58 Degrees to 2498 Degrees F/-50 Degrees to 1,750 Degrees C
