  11. Vacuum Ejector, 164Lpm, 1/8 in. (F)NPT
Shop All Vacuum Ejectors
Exair

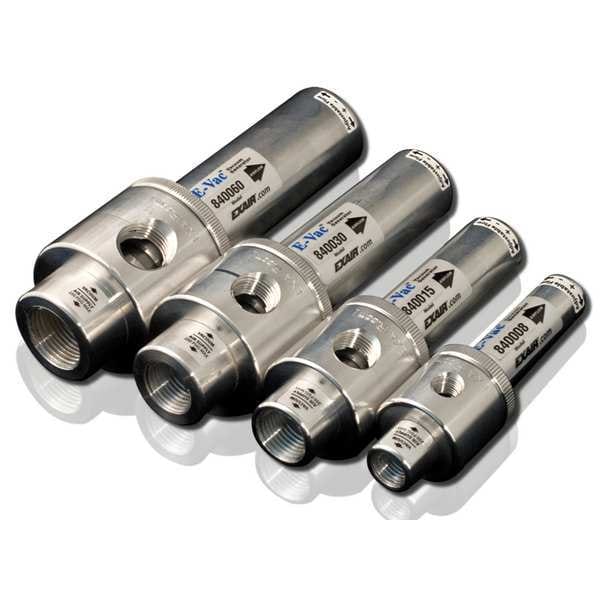

Vacuum Ejector, 164Lpm, 1/8 in. (F)NPT

product price: $192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Pressure Port Size 1/8 in
  • Vacuum Port Size 1/4 in
  • Exhaust Type 1/4 in (F)NPT
  • Vacuum Flow Rate 164.0 lpm
  • Temp. Range 250 Degrees F max
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pressure Port Size 1/8 in
Vacuum Port Size 1/4 in
Length 111 mm
Height 33 mm
Overall Length 111 mm

Details

Exhaust Type 1/4 in (F)NPT
Vacuum Flow Rate 164.0 lpm
Temp. Range 250 Degrees F max
Weight 250 g
Supply Pressure Range 0 to 250 psi
Vacuum Pressure Range 0 to 85 kPa
Valve Type Rotary
Ejector Type Single Stage Venturi
Item Vacuum Ejector
Maximum Supply Pressure 250 psi
Maximum Flow Rate 164 lpm
Vacuum Port Gender Female
Pressure Port Gender Female
Pressure Port Type NPT
Maximum Operating Temperature 250 Degrees F
Vacuum Port Type NPT

Description

Item Vacuum Ejector, Maximum Flow Rate 164 lpm, Maximum Operating Temperature 250 Degrees F, Maximum Supply Pressure 250 psi, Overall Length 111 mm, Pressure Port Gender Female, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Gender Female, Vacuum Port Size 1/4 in, Vacuum Port Type NPT, Valve Type Rotary, Weight 250 g
