Shop All Variable Pitch V-Belt Pulleys
Essick Air

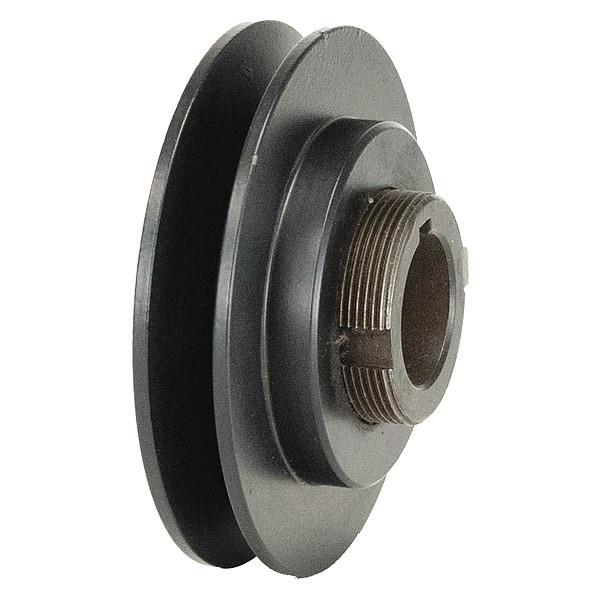

5/8" Fixed Bore 1 Groove Variable Pitch Pulley 4" OD
Mfr # 110279-003
Zoro # G3086517
$33.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- 3L Belt Pitch Dia. 3.10 in to 3.90 in
- Pulley Type Variable Pitch V-Belt Pulley
- Set Screw Included Yes
- 4L, A, or AX Belt Pitch Dia. 3.3 in to 4.3 in
- Keyway Size Type 0.187 in x0.093 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Essick Air
- MFR # 110279-003
- Zoro # G3086517
- UPC # 009009900762
- Country of Origin China
- Category Variable Pitch V-Belt Pulleys
Dimensions
3L Belt Pitch Dia. | 3.10 in to 3.90 in |
4L, A, or AX Belt Pitch Dia. | 3.3 in to 4.3 in |
Keyway Size Type | 0.187 in x0.093 in |
5L, B, or BX Belt Pitch Dia. | 3.4 in to 4.4 in |
Keyway Size | 0.187" x0.093" |
Pulley Bore Dia. | 5/8 in |
Pulley Outside Dia. | 4 in |
Fits Shaft Dia. | 5/8 in |
Maximum Pitch Diameter | 3.90 in (3L), 4.3 in (4L, A, AX), 4.4 in (5L, B, BX) |
Bore Diameter | 5/8 in |
BX Pitch Diameter (Maximum) | 4.4 in |
B Pitch Diameter (Minimum) | 3.4 in |
Minimum Pitch Diameter | 3.10 in (3L), 3.3 in (4L, A, AX), 3.4 in (5L, B, BX) |
3L Pitch Diameter (Maximum) | 3.9 in |
3L Belt Pitch Diameter | 3.1 in to 3.9 in |
BX Pitch Diameter (Minimum) | 3.4 in |
A Pitch Diameter (Minimum) | 3.3 in |
AX Pitch Diameter (Maximum) | 4.3 in |
5L Pitch Diameter (Minimum) | 4.4 in |
4L Pitch Diameter (Minimum) | 3.3 in |
A Pitch Diameter (Maximum) | 4.3 in |
5L Pitch Diameter (Maximum) | 3.4 in |
AX Pitch Diameter (Minimum) | 3.3 in |
4L, A, or AX Belt Pitch Diameter | 3.3 in to 4.3 in |
Keyway Width | 3/16 in |
5L, B, or BX Belt Pitch Diameter | 4.4 in to 3.4 in |
B Pitch Diameter (Maximum) | 4.4 in |
Outside Diameter | 4 in |
For Belt Trade Size | 3L, 4L, 5L, A, AX, B, BX |
Keyway Depth | 3/32 in |
3L Pitch Diameter (Minimum) | 3.1 in |
4L Pitch Diameter (Maximum) | 4.3 in |
Description
Variable Pitch V-Belt Pulley, Bore Diameter 5/8 in, Standards ISO 9001: 2008, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Classical, Cogged, Material Cast Iron, Maximum Pitch Diameter 3.90 in (3L), 4.3 in (4L, A, AX), 4.4 in (5L, B, BX), Number of Grooves 1, Outside Diameter 4 in, Set Screw Location 180 Degrees from Keyway, 90 Degrees Apart, 3L Pitch Diameter (Maximum) 3.9 in, 3L Pitch Diameter (Minimum) 3.1 in, 4L Pitch Diameter (Maximum) 4.3 in
