ESAB Rebel EMP 205ic Multiprocess Welder

Mfr # 0558102553
Zoro # G3239836

$4,358.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Series Rebel EMP 205ic
Input Voltage 120V AC, 230V AC
Polarity DC
Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase Single-Phase

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Esab
MFR # 0558102553
Zoro # G3239836
UPC #
662067196869
Country of Origin Multiple
Category Stick Welders

Dimensions

Overall Width	9 in
Overall Height	16 in

Details

Item	Multiprocess Welder
Series	Rebel EMP 205ic
Input Voltage	120V AC, 230V AC
Polarity	DC
Welding Processes	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase	Single-Phase
Standards	IP23S, CSA

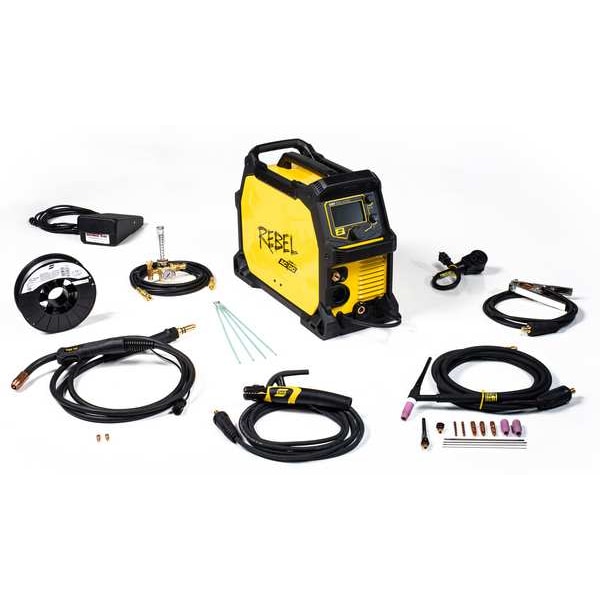

Includes	0.035 in. Wire, 12.5 ft. Hose, Atom Arc 7018 Electrodes, Contact Tips, Drive Rolls, Electrode Holder, Foot Control, Heliarc HW-17 TIG Torch outfit, Return Clamp with Leads, TIG Consumables Kit, Tweco Fusion 180 Velocity MIG gun, Victor Argon Flowmeter Regulator
Application	Industrial Welding
Features	TFT Multilingual Display
Amperage Range	5 A to 235 A
Color	Yellow
Kit Includes	Contact Tips, Flow Gauge/Regulator & Gas Hose, MIG Gun, Solid Wire, Stick Electrode Holder with Cable, Stick Electrodes, TIG Torch, Wireless Foot Control, Work Cable with Clamp
Stick Welding Output @ Duty Cycle	100 A @ 24 V, 100%, 125 A @ 25 V, 60%, 170 A @ 26.8 V, 25%
Stick Welding Maximum Output Current	180 A
Welder Kit Type	MIG/Stick/TIG Package
TIG Welding Output @ Duty Cycle	110 A @ 14.4 V, 100%, 125 A @ 15 V, 60%, 205 A @ 18.2 V, 25%
Enhanced Process	Pulsed TIG (GTAW-P)
Model	0558102553
Maximum Wire Feed Speed	475 in/min
Pulse Frequency	0.1 to 500 pulses/second
For Wire Type	Flux-Cored, Solid
Open Circuit Voltage	68 V
TIG Welding Maximum Output Current	205 A
For Material Type	Aluminum
Remote Connection Type	8-Pin (ESAB)
Plug Type	Bare Leads
Max. Amperage Range (TIG)	150 A - 300 A
Max. Amperage Range (MIG)	150 A - 300 A
Welding Mode	CC/CV
Input Frequency	50/60 Hz
TIG Arc Start Feature	High Frequency Start, Lift Arc Start
MIG Welding Maximum Output Current	235 A
Max. Amperage Range (Stick)	150 A - 300 A
MIG Welding Output @ Duty Cycle	110 A @ 19.5V, 100%, 125 A @ 20.3 V, 60%, 150 A @ 21.5 V, 40%, 205 A @ 24.3 V, 25%
Input Voltage (Nominal)	120V
Weight	49 lb
Rated Output at Duty Cycle (Stick)	100 A @ 100%, 170 A @ 25%
Process	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model	ESAB - 0558102553

Description

Multiprocess Welder, Series Rebel EMP 205ic, Input Voltage 120V AC, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 180 A, TIG Welding Maximum Output Current 205 A, MIG Welding Maximum Output Current 235 A, For Wire Type Flux-Cored, Solid, Maximum Wire Feed Speed 475 in/min, Remote Connection Type 8-Pin (ESAB)
