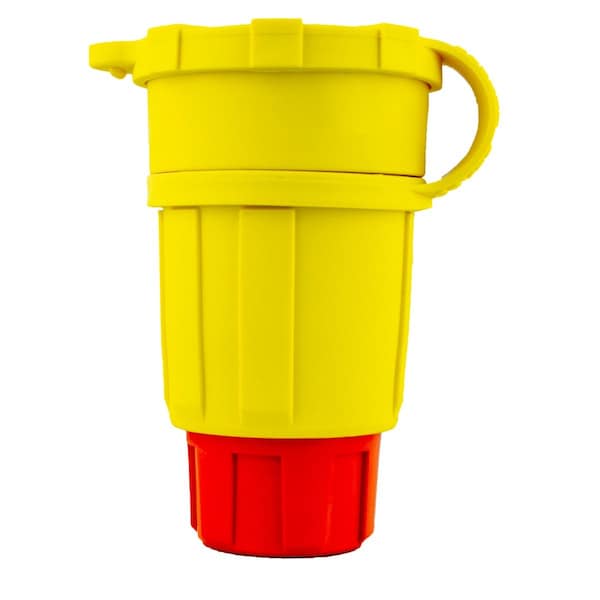

30A Locking Connector 2P 3W 125VAC L5-30R YL

Mfr # 2610-CW6P-AM
Zoro # G0116807

$92.00

9% off

$82.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Amps - Plugs and Receptacles 30
NEMA Plug Configuration - Plugs and Receptacles L5-30R
Amps 30
Voltage - Plugs and Receptacles 125V AC
Voltage 125VAC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Ericson
MFR # 2610-CW6P-AM
Zoro # G0116807
UPC #
782862899977
Country of Origin United States
Category Communication Cables

Dimensions

Cord Size	0.470 in to 0.720 in
For Minimum Cable Diameter	0.47 in
For Maximum Cable Diameter	0.72 in

Details

Item - Plugs and Receptacles	Watertight Locking Connector
Item	Watertight Locking Connector
Amps - Plugs and Receptacles	30
NEMA Plug Configuration - Plugs and Receptacles	L5-30R
Amps	30
Voltage - Plugs and Receptacles	125V AC
Voltage	125VAC
Number of Poles	2
NEMA Configuration	L5-30
Number of Wires	3
Wiring Style	Standard
Color - Plugs and Receptacles	Yellow
Shrouded / Non-Shrouded	Shrouded
Color	Yellow
Grade - Plugs and Receptacles	Industrial
Phase	Single
Grade	Industrial
Corrosion Resistant	No
Standards	CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740
Antimicrobial	Yes
Power Indicator	No
Material	Thermoplastic Elastomer
IP Rating	IP69K
HP	2.0
NEMA Rating	12, 4, 4X, 6, 6P
Insulation Material	Thermoplastic
Voltage Rating	125V AC
Market	Industrial
Midget Locking	No
Power Indicating Light	No
NEMA Receptacle Configuration	L5-30R
Shrouded	Yes
Housing Color	Yellow
For Environment	Washdown
NEMA Enclosure Rating	12, 4, 4X, 6, 6P
Current Rating	30 A
Housing Material	Thermoplastic Elastomer
Resistance Properties	Antimicrobial
Horsepower Rating	2 hp
Ideal Application	Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
Sub Brand / Trademark	Perma-Kleen
UL	UL Listed to ANSI/UL 498, File E17740
CSA	CSA Certified to CSA C22.2 No.42, File 31943
NSF	NSF/ANSI/3-A 14159-1
Environmental Rating	Watertight (IP69K)
Poles / Wires	2P/3W
Device Type	Connector
Blade Style	Locking

Description

Watertight Locking Connector, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, IP Rating IP69K, NEMA Receptacle Configuration L5-30R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Antimicrobial, Shrouded Yes, Voltage Rating 125V AC, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.47 in, Grade Industrial, Horsepower Rating 2 hp, Market Industrial, Midget Locking No
