  11. Indexable Cutting Head Unit, PSC63S40LNVUCR16, 178.00mm L, 35 Degrees Diamond Insert Shape
Shop All Indexable Boring Bars
Erickson

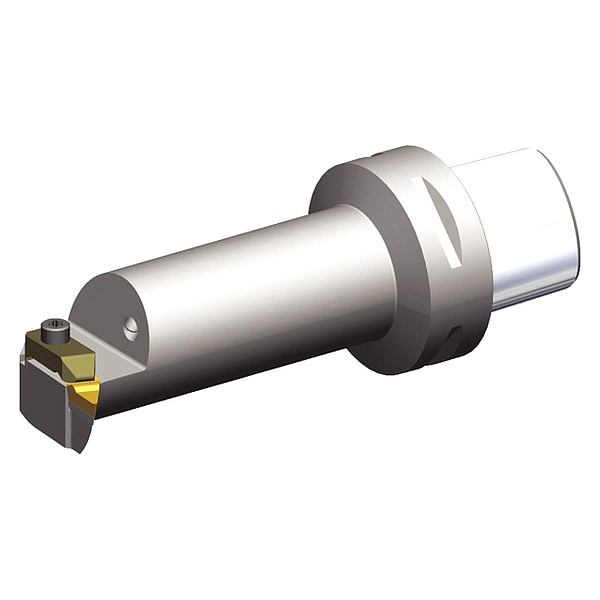

Indexable Cutting Head Unit, PSC63S40LNVUCR16, 178.00mm L, 35 Degrees Diamond Insert Shape

product price: $770.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 178.00mm
  • Shank Dia. 63.00mm
  • Cutting Direction Right Hand
  • Insert Shape 35 Degrees Diamond
  • ANSI Code PSC63S40LNVUCR16
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length 178.00mm
Shank Dia. 63.00mm
Insert Size 160408 (332)
Max. Bore Depth 113.00mm
Min. Bore Dia. 53.00mm
Insert Cutting Edge Length 16.61mm
Connection Size PSC63

Details

Item Indexable Cutting Head Unit
Cutting Direction Right Hand
Insert Shape 35 Degrees Diamond
ANSI Code PSC63S40LNVUCR16
Coolant Fed Coolant Through
Toolholder Style NVUC
Center to Cutting Tip 32.00mm
Standards ISO 26623
Insert Style VC
ISO Number PSC63S40LNVUCR16
Cutting Application Groove and Thread Profiling
Number of Coolant Holes 1
Side Cutting Edge Angle -3 Degrees
Approach Angle 93 Degrees
Insert Holding Type Clamp
Insert Clearance Angle 7 Degrees

Description

Indexable Cutting Head Unit, NVUC, Insert Shape 35 Degrees Diamond, Overall Length 178.00mm, PSC63S40LNVUCR16, 93 Degrees , 32.00mm, Coolant Through, Groove and Thread Profiling, Right Hand
