Shop All Indexable Boring Bars
Erickson

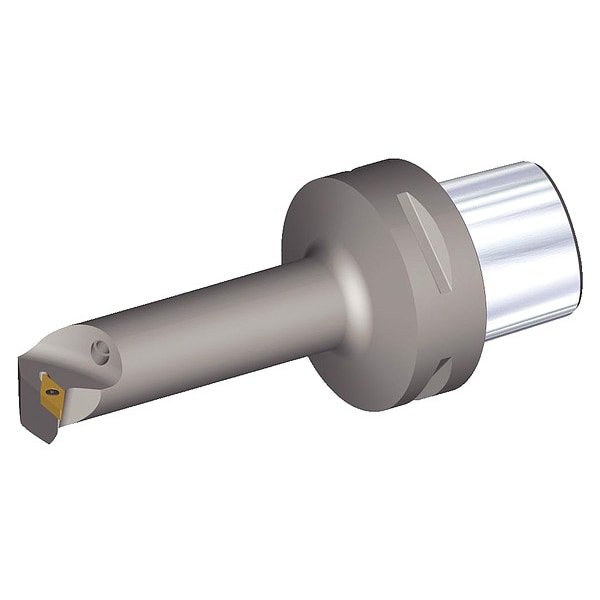

Indexable Cutting Head Unit, PSC63S32LSVUBL11, 178.00mm L, 35 Degrees Diamond Insert Shape
Mfr # PSC63S32LSVUBL11
Zoro # G3569454
product price: $655.99
/ea
Free Shipping & Returns
$655.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Shank Dia. 63.00mm
- Overall Length 178.00mm
- Cutting Direction Left Hand
- Insert Shape 35 Degrees Diamond
- ANSI Code PSC63S32LSVUBL11
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Erickson
- MFR # PSC63S32LSVUBL11
- Zoro # G3569454
- UPC # 4059782019812
- Country of Origin Germany
- Category Indexable Boring Bars
Dimensions
| Shank Dia. | 63.00mm |
| Overall Length | 178.00mm |
| Insert Size | 110304 (221) |
| Min. Bore Dia. | 40.00mm |
| Insert Cutting Edge Length | 11.07mm |
| Max. Bore Depth | 114.12mm |
| Connection Size | PSC63 |
Details
| Item | Indexable Cutting Head Unit |
| Cutting Direction | Left Hand |
| Insert Shape | 35 Degrees Diamond |
| ANSI Code | PSC63S32LSVUBL11 |
| Rake | -5 Degrees Radial, 0 Degrees Axial |
| Approach Angle | 93 Degrees |
| Insert Clearance Angle | 5 Degrees |
| Standards | ISO 26623 |
| Side Cutting Edge Angle | -3 Degrees |
| Number of Coolant Holes | 1 |
| Insert Holding Type | Screw On |
| Toolholder Style | SVUB |
| Insert Style | VB |
| Cutting Application | Boring |
| Coolant Fed | Coolant Through |
| ISO Number | PSC63S32LSVUBL11 |
| Center to Cutting Tip | 22.00mm |
Description
Indexable Cutting Head Unit, SVUB, Insert Shape 35 Degrees Diamond, Overall Length 178.00mm, PSC63S32LSVUBL11, 93 Degrees , 22.00mm, Coolant Through, Boring, Left Hand
