  11. Swing Cylinder, Lower Flange, 4200 lb.
Shop All Swing Cylinders
Enerpac

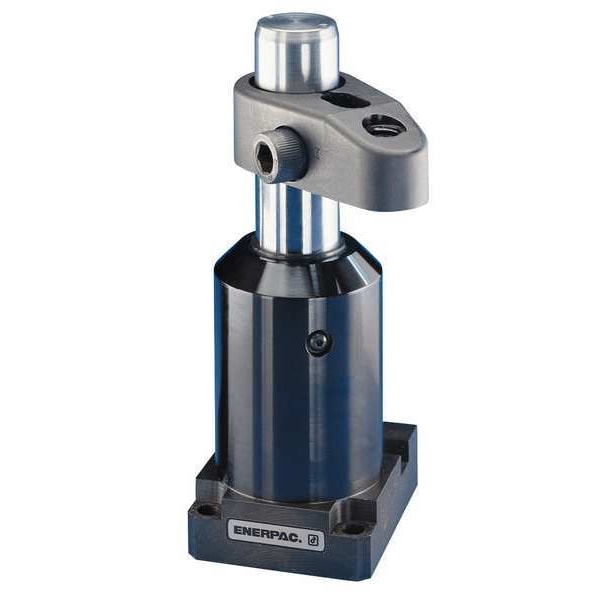

Swing Cylinder, Lower Flange, 4200 lb.

product price: $1,069.00
/ea
Free Shipping & Returns
Not eligible for select promotions
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Single Acting/Double Acting Double Acting
  • Clamping Force 4,200 lb
  • Total Stroke 1.16 in
  • Clamping Stroke 0.55 in
  • Effective Area Clamped 1.10 sq in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Bolt Size 5/16"-24
Port Size 0.4375-20 UNF-2B
Outside Dia. 3.35 in
Mounting Hole Dia. 2.48 in
Extended Height 6.88 in
Min. Hole Depth 0.67 in

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 4,200 lb, Total Stroke 1.16 in, Effective Area Clamped 1.10 sq in, Clamping Stroke 0.55 in, Max. Pressure 5,000 psi, Series SLR, Swing Angle 90 Degrees , Port Size 0.4375-20 UNF-2B, Effective Area Unclamped 2.35 sq in, Oil Capacity Clamped 1.22 cu in, Oil Capacity Unclamped 2.6 cu in, Max. Oil Flow 140 cu in/min
