Shop All Swing Cylinders
Enerpac

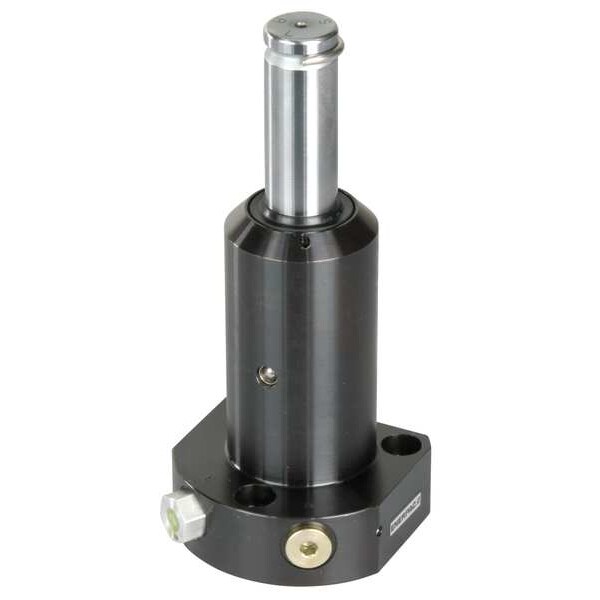

Swing Cylinder, Lower Flange, 2400 lb

product price: $684.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Single Acting
  • Clamping Force 2,400 lb
  • Total Stroke 1.1 in
  • Clamping Stroke 0.5 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Outside Dia. 1.88 in
Port Size #4 SAE
Mounting Hole Dia. 0.347 in
Bolt Size 5/16"-24
Extended Height 6.75 in
Min. Hole Depth 0.88 in

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Single Acting, Turns Left, Clamping Force 2,400 lb, Total Stroke 1.1 in, Effective Area Clamped 0.63 sq in, Clamping Stroke 0.5 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.7 cu in, Max. Oil Flow 100 cu in/min, Pressure Range 500 to 5000 psi, Extended Height 6.75 in, Outside Dia. 1.88 in, Mounting Hole Dia. 0.347 in
