Shop All Swing Cylinders
Enerpac

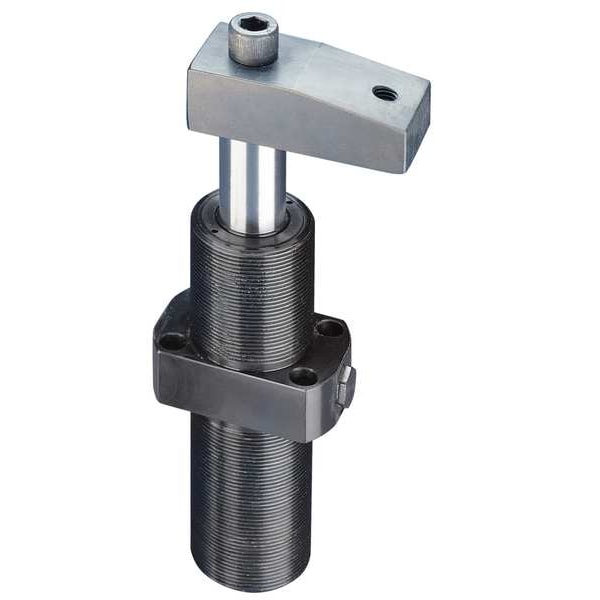

Swing Cylinder, 500 lb

product price: $704.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Single or Double Acting
  • Clamping Force 500 lb
  • Total Stroke 1.49 in
  • Clamping Stroke 0.25 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Port Size 1/8 in NPT
Min. Hole Depth 0.63 in
Extended Height 5.27 in
Mounting Hole Dia. 0.2 in
Bolt Size 1/4"-28
Outside Dia. 1.0 in

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Threaded Body, Single Acting/Double Acting Single or Double Acting, Turns Left or Right, Clamping Force 500 lb, Total Stroke 1.49 in, Effective Area Clamped 0.25 sq in, Clamping Stroke 0.25 in, Max. Pressure 3,000 psi, Series SC, Swing Angle 90 Degrees , Port Size 1/8 in NPT, Effective Area Unclamped 0.442 sq in, Pressure Range 1500 to 3000 psi, Extended Height 5.27 in, Outside Dia. 1.0 in, Mounting Hole Dia. 0.2 in
