Shop All Single Acting Hydraulic Cylinders
Enerpac

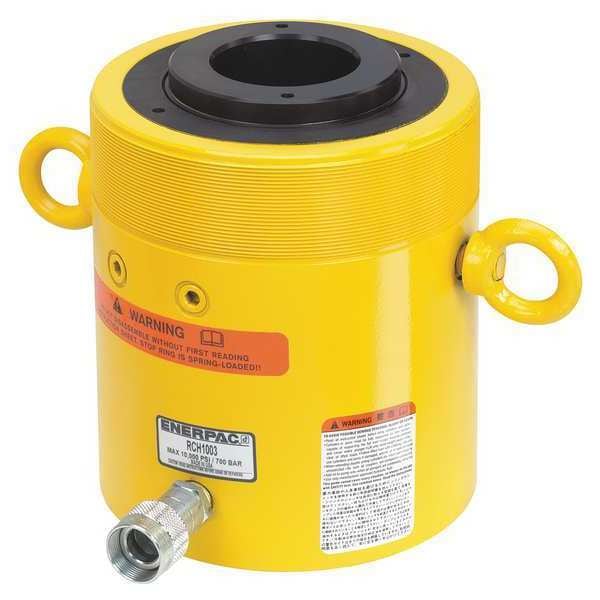

RCH1003, 103.1 ton Capacity, 3.00 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder
Mfr # RCH1003
Zoro # G3094165
product price: $7,114.00
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.
$7,114.00
Free 30-Day Returns
Key Features
- Promotion Restriction Not eligible for promotion
- Weight Capacity 100 tons
- Plunger Dia. 5 in
- Bolt Circle Dia. 7"
- Extended Height 13 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Enerpac
- MFR # RCH1003
- Zoro # G3094165
- UPC # 662005303090
- Country of Origin China
- Category Single Acting Hydraulic Cylinders
Dimensions
| Plunger Dia. | 5 in |
| Bolt Circle Dia. | 7" |
| Extended Height | 13 in |
| Stroke Length | 3 in |
| Center Hole Dia. | 3.11 in |
| Collar Thread Size | 8-3/8"-12 |
| Outside Dia. | 8.38 in |
| Thread Size | 5/8"-11 |
| Retracted Height | 10 in |
| Plunger Thread Size | 4"-16 |
| Nominal Stroke Length | 3 in |
| Base Bolt Circle Dia. | 7 in |
| Base Mounting Thread Size | 5/8"-11 |
Description
General Purpose Hydraulic Ram, Single Acting, Hollow Plunger, Steel, Nominal Capacity 100 ton, Max. Push Capacity 100 ton, Stroke Length 3 in, Nominal Stroke Length 3 in, Effective Push Area 20.63 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 61.88 cu in, Retracted Height 10 in, Extended Height 13 in, Outside Dia. 8.38 in, Plunger Dia. 5 in, Plunger Thread Size 4 In.-16, Collar Thread Size 8-3/8 In.-12, Base Bolt Circle Dia. 7 in, Base Mounting Thread Size 5/8 In.-11
