Enerpac

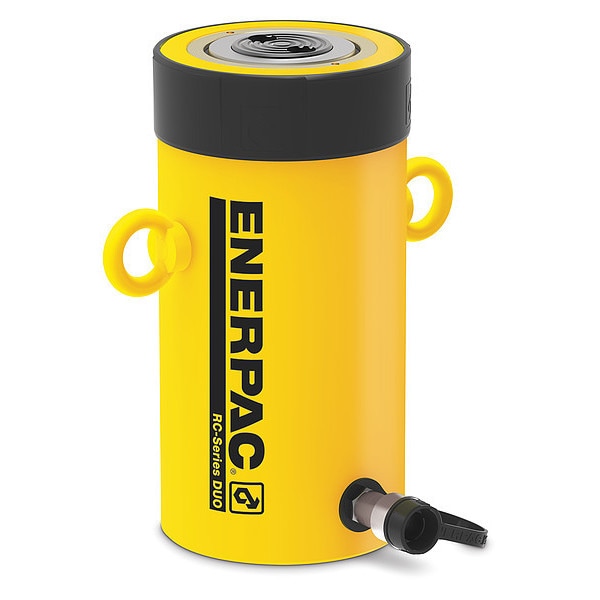

RC1006, 103.1 ton Capacity, 6.63 in Stroke, General Purpose Hydraulic Cylinder

product price: $4,202.00
/ea
Item requires special delivery charges. A $90.00 per item surcharge will be applied.
Not eligible for select promotions
Free 30-Day Returns

Key Features

  • Cylinder Type General Purpose
  • Retracted Height 14.06 in
  • Center Hole Dia. 4 1/8 in
  • Effective Area 20.63 sq. in.
  • Stroke Length 6 5/8 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Retracted Height 14.06 in
Center Hole Dia. 4 1/8 in
Stroke Length 6 5/8 in
Thread Size 3/4"-10
Collar Thread Size 6-7/8"-12
Plunger Dia. 4.13 in
Outside Dia. 7 in
Bolt Circle Dia. 5.5"
Extended Height 20.56 in
Nominal Stroke Length 7 in
Base Bolt Circle Dia. 5.5 in

Description

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 100 ton, Max. Push Capacity 100 ton, Stroke Length 6 5/8 in, Nominal Stroke Length 7 in, Effective Push Area 20.63 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 4.75 cu in, Retracted Height 14.06 in, Extended Height 20.56 in, Outside Dia. 7 in, Plunger Dia. 4.13 in, Collar Thread Size 6-7/8 In.-12, Base Bolt Circle Dia. 5.5 in, Center Hole Dia. 4 1/8 in, Series RC, Includes Coupler, Dust Cap
