  11. LPL1602, 179 ton Capacity, 1.77 in Stroke, Low Height, Lock Nut Hydraulic Cylinder
Shop All Single Acting Hydraulic Cylinders
Enerpac

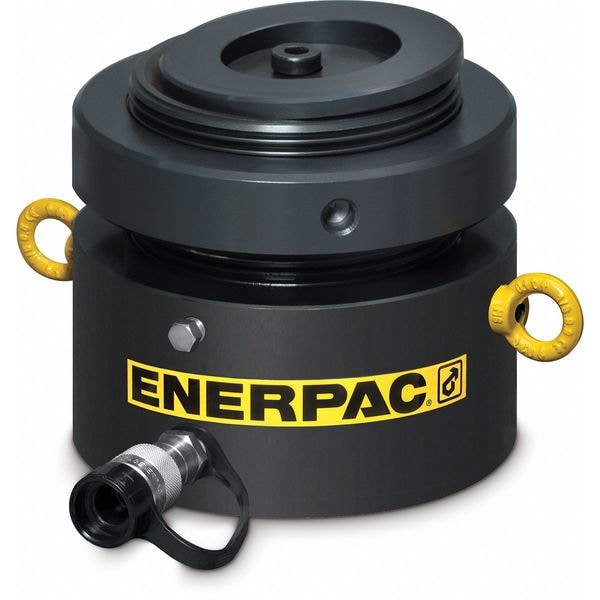

LPL1602, 179 ton Capacity, 1.77 in Stroke, Low Height, Lock Nut Hydraulic Cylinder

product price: $4,987.99
/ea
Free Shipping & Returns
Not eligible for select promotions
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Pressure 10,150 psi
  • Single Acting/Double Acting Single Acting
  • Cylinder Type Lock Nut
  • Oil Capacity 35.18 cu. in.
  • Effective Area 35.18 sq. in.
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Collar Thread Size 2-1/4"-14
Plunger Dia. 6.69 in
Extended Height 7.6 in
Thread Size 1/4"
Retracted Height 5.83 in
Center Hole Dia. 6 49/64 in
Stroke Length 1 3/4 in
Plunger Thread Size 1/4 in
Outside Dia. 8.66 in
Bolt Circle Dia. 22.19"
Nominal Stroke Length 2 in
Base Bolt Circle Dia. 22.19 in

Description

Low Profile Lock Nut Hydraulic Ram, Single Acting, Lock Nut, Steel, Nominal Capacity 150 ton, Stroke Length 1 3/4 in, Nominal Stroke Length 2 in, Effective Push Area 35.18 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 62.3 cu in, Retracted Height 5.83 in, Extended Height 7.6 in, Outside Dia. 8.66 in, Plunger Dia. 6.69 in, Plunger Thread Size 1/4 in, Collar Thread Size 2-1/4 In.-14, Base Bolt Circle Dia. 22.19 in, Center Hole Dia. 6 49/64 in, Series LPL
