Shop All Swing Cylinders
Enerpac

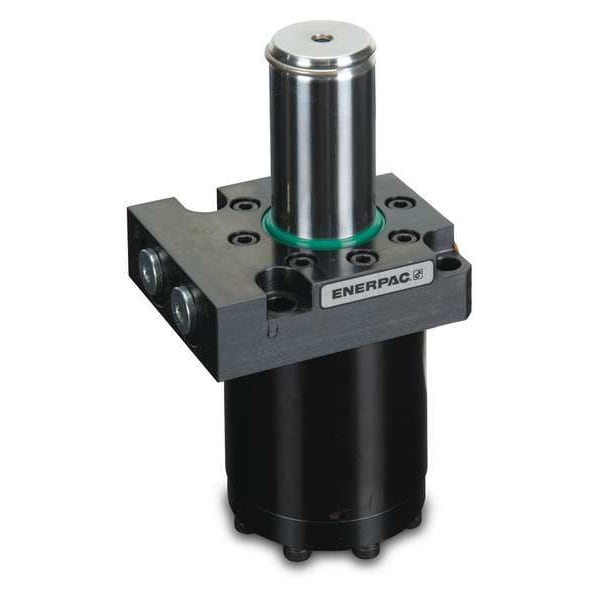

Hydraulic Cylinder, Left, 4200 lb.
Mfr # SURD202
Zoro # G0092003
product price: $1,113.99
/ea
Free Shipping & Returns
$1,113.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Promotion Restriction Not eligible for promotion
- Single Acting/Double Acting Double Acting
- Clamping Force 4,200 lb
- Total Stroke 0.78 in
- Clamping Stroke 0.55 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Enerpac
- MFR # SURD202
- Zoro # G0092003
- UPC # 662005108947
- Country of Origin United States
- Category Swing Cylinders
Dimensions
Outside Dia. | 2.46 in |
Extended Height | 6.57 in |
Mounting Hole Dia. | 2.475 in |
Min. Hole Depth | 0.67 in |
Port Size | #4 SAE |
Bolt Size | 5/16"-24 |
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 4,200 lb, Total Stroke 0.78 in, Effective Area Clamped 1.10 sq in, Clamping Stroke 0.55 in, Max. Pressure 5,076 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 2.35 sq in, Oil Capacity Clamped 1.22 cu in, Oil Capacity Unclamped 2.6 cu in, Max. Oil Flow 140 cu in/min, Pressure Range 500 to 5000 psi
