Enerpac

Hydraulic Accumulator, 7.7 cu in, 5000 psi

product price: $1,736.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Pre-Charged Yes
  • Fluid Volume 7.7 cu in
  • Gas Volume 10.37 cu.-in.
  • Max. Pressure 5,000 psi
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height (In.) 5.71
Overall Height 5.71 in
Vent Diameter 10.37 cu in

Details

Promotion Restriction Not eligible for promotion
Pre-Charged Yes
Fluid Volume 7.7 cu in
Gas Volume 10.37 cu.-in.
Max. Pressure 5,000 psi
Mounting Vertical
Construction Diaphragm
Inlet SAE (In.) G1/4"
Item Diaphragm Accumulator & Control Unit
Usable Oil Capacity 4.51 cu in @ 5000 psi
Maximum Pressure 5000 psi
Temp. Range 32 to 180 F
Gas Volume (Cu.-In.) 10.37
Pre-Charged Nitrogen Pressure 1,450 psi

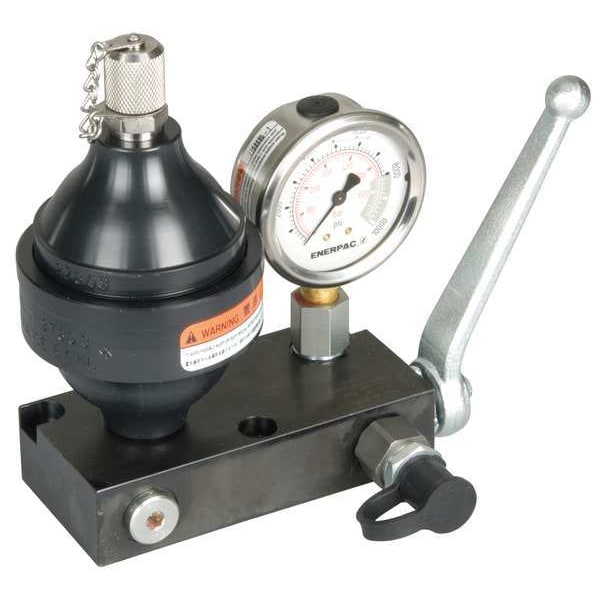

Includes Accumulator, Relief Valve, Ball Check Shut-Off, and Glycerin-Filled Gauge

Description

Diaphragm Accumulator & Control Unit, Fluid Volume 7.7 cu in, Vent Diameter 10.37 cu in, Max. Pressure 5,000 psi, Overall Height 5.71 in, Inlet Port Thread Size G 1/4, Pre-Charged Yes, Pre-Charged Nitrogen Pressure 1,450 psi, Usable Oil Capacity 4.51 cu in @ 5000 psi, Operating Temp. Range 32 to 180 Degrees F

Restrictions

  • Hazardous material
