  11. HCR502, 62 ton Capacity, 1.97 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
Shop All Maintenance Sets
Enerpac

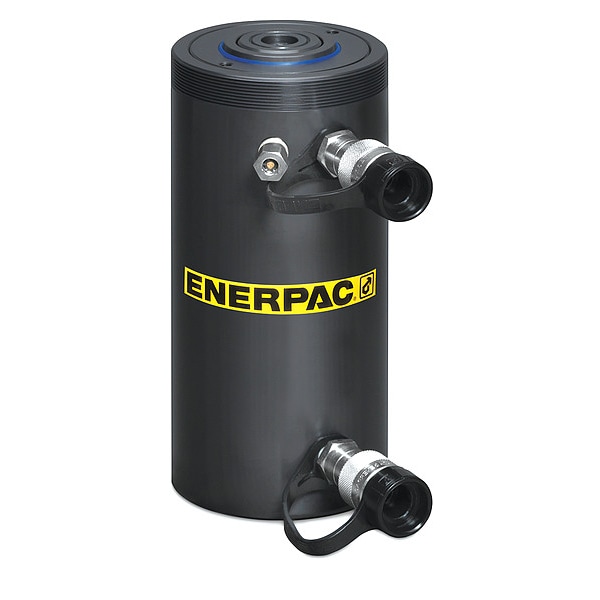

HCR502, 62 ton Capacity, 1.97 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

product price: $2,706.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Cylinder Nominal Capacity 50 tons
  • Bore Dia. 3.94 in
  • Outside Dia. 5.12 in
  • Series HCR
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Bore Dia. 3.94 in
Outside Dia. 5.12 in
Nominal Stroke Length 2 in
Retracted Height 7.2 in
Extended Height 9.2 in
Stroke Length 2 in
Base Mounting Thread Size M12
Plunger Dia. 2.76 in

Details

Promotion Restriction Not eligible for promotion
Cylinder Nominal Capacity 50 tons
Item Hydraulic Ram
Series HCR
Material of Construction Steel
Single Acting/Double Acting Double Acting
Oil Capacity Push 23.96 cu in
Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Nominal Capacity 50 ton
Effective Push Area 12.17 sq in
Oil Capacity Advance: 23.96 cu in; Retract: 12.22 cu in
Max. Pressure 10,150 psi
Weight 37 lb
Application Lift, Lower, Push
Body Material Steel
Cylinder Type High Cycle

Description

Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 50 ton, Stroke Length 2 in, Nominal Stroke Length 2 in, Effective Push Area 12.17 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 23.96 cu in, Retracted Height 7.2 in, Extended Height 9.2 in, Outside Dia. 5.12 in, Plunger Dia. 2.76 in, Base Mounting Thread Size M12, Weight 37 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 3.94 in
