  11. CULP100, 121.1 ton Capacity, 0.24 in Stroke, Ultra Flat Hydraulic Cylinder with Stop-Ring
Shop All Single Acting Hydraulic Cylinders
Enerpac

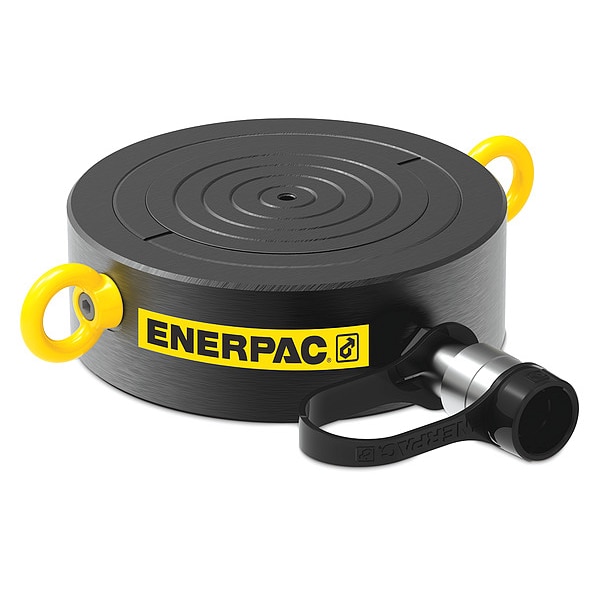

CULP100, 121.1 ton Capacity, 0.24 in Stroke, Ultra Flat Hydraulic Cylinder with Stop-Ring

product price: $2,324.00
/ea
Free Shipping & Returns
Not eligible for select promotions
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Stroke Length 15/64 in
  • Cylinder Type Low Profile
  • Series CULP
  • Effective Area 23.85 sq in
  • Single Acting/Double Acting Single Acting
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Stroke Length 15/64 in
Bore Dia. 5.51 in
Nominal Stroke Length 1/4 in
Extended Height 2.8 in
Retracted Height 2.55 in
Outside Dia. 7.67 in

Details

Promotion Restriction Not eligible for promotion
Cylinder Type Low Profile
Series CULP
Effective Area 23.85 sq in
Single Acting/Double Acting Single Acting
Body Material Steel
Max. Pressure 10,150 psi
Finish Nitride
Item Hydraulic Ram
Oil Capacity 92.3 cu. cm.
Nominal Capacity 100 ton
Oil Capacity Push 5.63 cu in
Weight 25.3 lb
Effective Push Area 23.85 sq in
Weight Capacity 100 tons

Description

Hydraulic Ram, Single Acting, Low Profile, Steel, Nominal Capacity 100 ton, Stroke Length 15/64 in, Nominal Stroke Length 1/4 in, Effective Push Area 23.85 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 5.63 cu in, Retracted Height 2.55 in, Extended Height 2.8 in, Outside Dia. 7.67 in, Weight 25.3 lb, Series CULP, Bore Dia. 5.51 in
