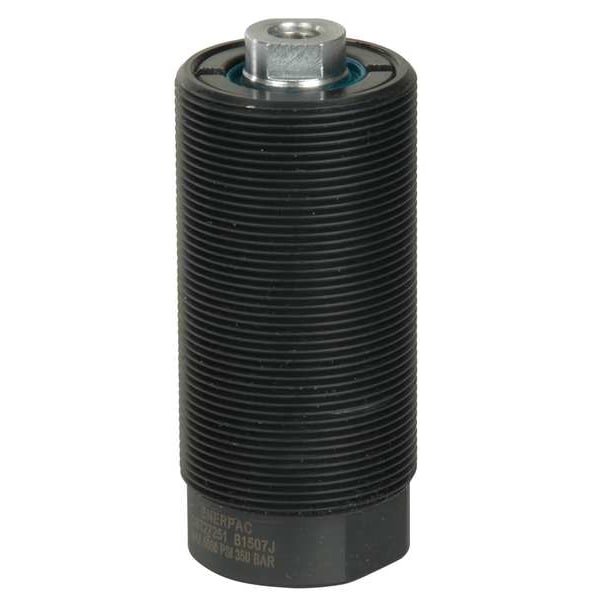

CST27251, 6110 lbs Capacity, 0.98 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
Mfr # CST27251
Zoro # G0565521
product price: $290.00
/ea
Free Shipping & Returns
$290.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Promotion Restriction Not eligible for promotion
- Single Acting/Double Acting Single Acting
- Push Capacity @ 5000 psi 6,110 lb
- Stroke Length 7/8 in
- Retracted Height 3.68 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Enerpac
- MFR # CST27251
- Zoro # G0565521
- UPC # 662005133406
- Country of Origin United States
- Category Threaded Body Cylinders
Dimensions
Stroke Length | 7/8 in |
Retracted Height | 3.68 in |
Outside Dia. | 1.625 in |
Extended Height | 4.66 in |
Plunger Thread Size | 3/8"-16 |
Details
Promotion Restriction | Not eligible for promotion |
Single Acting/Double Acting | Single Acting |
Push Capacity @ 5000 psi | 6,110 lb |
Body Thread | 1-5/8"-16 |
Pressure Range | 580 to 5000 psi |
Stroke | 0.98" |
Item | Threaded Body Hydraulic Cylinder |
Plunger Thread | 3/8"-16 UN |
Function | Single Acting |
Type | Threaded Body |
Oil Capacity Push | 1.2 cu in |
Capacity @ 5000 PSI | 6110 lb. |
Seal Material | Polyurethane/Buna N |
Effective Area Push | 1.22 sq. in. |
Material of Construction | Steel |
Effective Push Area | 1.22 sq in |
Body Material | Steel |
Mounting Style | Threaded Body |
Cylinder Type | Threaded Body |
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 6,110 lb, Stroke Length 7/8 in, Effective Push Area 1.22 sq in, Oil Capacity Push 1.2 cu in, Pressure Range 580 to 5000 psi, Extended Height 4.66 in, Retracted Height 3.68 in, Body Thread 1-5/8 In.-16, Plunger Thread Size 3/8 In.-16, Outside Dia. 1.625 in, Seal Material Polyurethane/Buna N
