  11. CST18131, 3950 lbs Capacity, 0.51 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
Shop All Threaded Body Cylinders
Enerpac

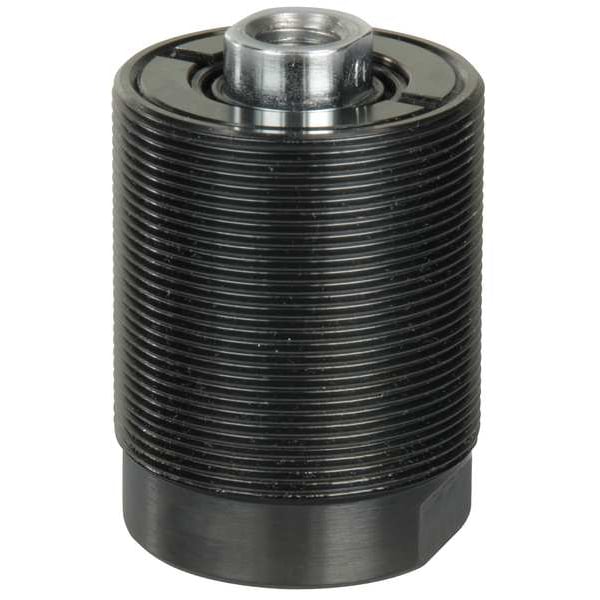

CST18131, 3950 lbs Capacity, 0.51 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder

product price: $223.00
/ea
Free Shipping & Returns
Not eligible for select promotions
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Single Acting/Double Acting Single Acting
  • Push Capacity @ 5000 psi 3,950 lb
  • Stroke Length 1/2 in
  • Retracted Height 2.75 in
  • Body Thread 1-5/16"-16
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Stroke Length 1/2 in
Retracted Height 2.75 in
Extended Height 3.26 in
Outside Dia. 1.3125 in
Plunger Thread Size 5/16"-24

Details

Promotion Restriction Not eligible for promotion
Single Acting/Double Acting Single Acting
Push Capacity @ 5000 psi 3,950 lb
Body Thread 1-5/16"-16
Pressure Range 580 to 5000 psi
Oil Capacity Push 0.4 cu in
Item Threaded Body Hydraulic Cylinder
Seal Material Polyurethane/Buna N
Effective Area Push 0.79 sq. in.
Capacity @ 5000 PSI 3950 lb.
Plunger Thread 5/16"-24 UN
Type Threaded Body
Function Single Acting
Stroke 0.51"
Material of Construction Steel
Mounting Style Threaded Body
Effective Push Area 0.79 sq in
Body Material Steel
Cylinder Type Threaded Body

Description

Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 3,950 lb, Stroke Length 1/2 in, Effective Push Area 0.79 sq in, Oil Capacity Push 0.4 cu in, Pressure Range 580 to 5000 psi, Extended Height 3.26 in, Retracted Height 2.75 in, Body Thread 1-5/16 In.-16, Plunger Thread Size 5/16 In.-24, Outside Dia. 1.3125 in, Seal Material Polyurethane/Buna N
