Shop All Threaded Body Cylinders
Enerpac

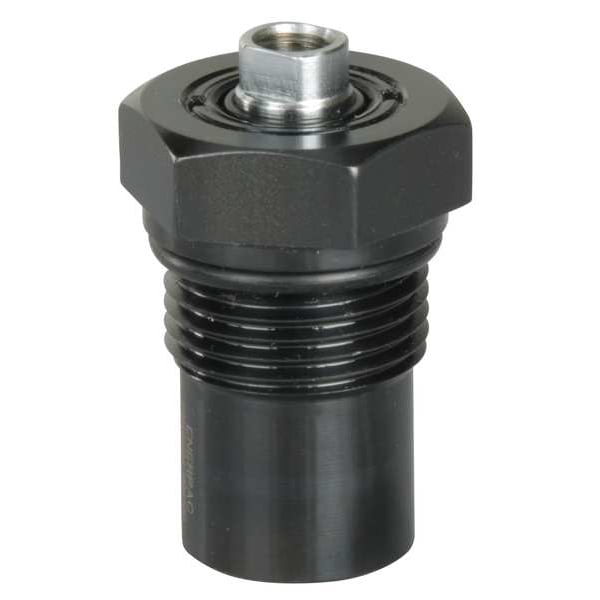

CSM10131, 2590 lbs Capacity, 0.51 in Stroke, Manifold Hydraulic Cylinder
Mfr # CSM10131
Zoro # G2020164
product price: $193.00
/ea
Free Shipping & Returns
$193.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Promotion Restriction Not eligible for promotion
- Single Acting/Double Acting Single Acting
- Push Capacity @ 5000 psi 2,590 lb
- Stroke Length 1/2 in
- Retracted Height 2.14 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Enerpac
- MFR # CSM10131
- Zoro # G2020164
- UPC # 662005133352
- Country of Origin United States
- Category Threaded Body Cylinders
Dimensions
Stroke Length | 1/2 in |
Retracted Height | 2.14 in |
Extended Height | 2.62 in |
Min. Hole Depth | 1.57 in |
Plunger Thread Size | 5/16"-24 |
Details
Promotion Restriction | Not eligible for promotion |
Single Acting/Double Acting | Single Acting |
Push Capacity @ 5000 psi | 2,590 lb |
Body Thread | 1-1/16"-12 |
Pressure Range | 580 to 5000 psi |
Capacity @ 5000 PSI | 2590 lb. |
Oil Capacity Push | 0.26 cu in |
Plunger Thread | 5/16"-24 UN |
Type | Threaded Body |
Material of Construction | Steel |
Seal Material | Polyurethane/Buna N |
Stroke | 0.51" |
Item | Threaded Body Hydraulic Cylinder |
Effective Area Push | 0.50 sq. in. |
Function | Single Acting |
Effective Push Area | 0.50 sq in |
Mounting Style | Manifold Mount |
Body Material | Steel |
Cylinder Type | Threaded Body |
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Manifold Mount, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 2,590 lb, Stroke Length 1/2 in, Effective Push Area 0.50 sq in, Oil Capacity Push 0.26 cu in, Pressure Range 580 to 5000 psi, Extended Height 2.62 in, Retracted Height 2.14 in, Body Thread 1-1/16 In.-12, Plunger Thread Size 5/16 In.-24, Min. Hole Depth 1.57 in, Seal Material Polyurethane/Buna N
