  11. ACL21A, Pre-charged Accumulator, .90 in3 Maximum Rated Oil Volume
Shop All Diaphragm Accumulators
Enerpac

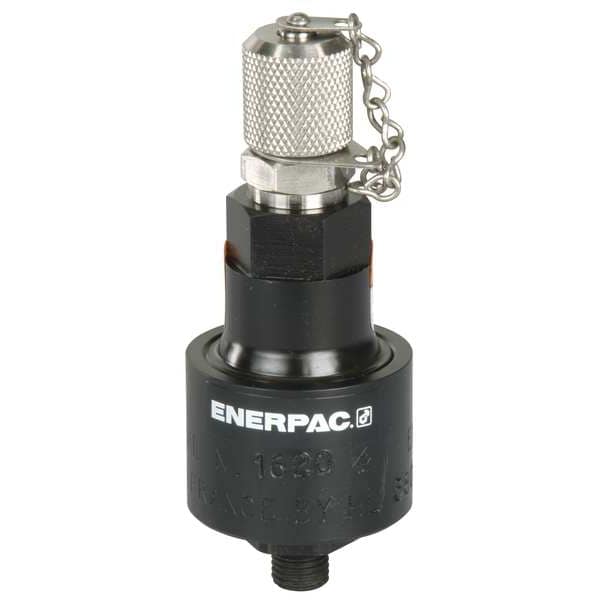

ACL21A, Pre-charged Accumulator, .90 in3 Maximum Rated Oil Volume

product price: $632.00
/ea
Free Shipping & Returns
Not eligible for select promotions
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Pre-Charged Yes
  • Fluid Volume 0.9 cu in
  • Gas Volume 1.22 cu.-in.
  • Max. Pressure 5,000 psi
  • Usable Oil Capacity 0.53 cu in @ 5000 psi
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dia. (In.) 1.69
Height (In.) 4.14
Overall Height 4.14 in
Diameter 1.69 in
Vent Diameter 1.22 cu in

Details

Promotion Restriction Not eligible for promotion
Pre-Charged Yes
Fluid Volume 0.9 cu in
Gas Volume 1.22 cu.-in.
Max. Pressure 5,000 psi
Usable Oil Capacity 0.53 cu in @ 5000 psi
Mounting Vertical
Temp. Range 32 to 180 F
Construction Diaphragm
Maximum Pressure 5000 psi
Gas Volume (Cu.-In.) 1.22
Item Diaphragm Accumulator
Pre-Charged Nitrogen Pressure 1,450 psi
Inlet SAE (In.) #4 Macho

Description

Diaphragm Accumulator, Fluid Volume 0.9 cu in, Vent Diameter 1.22 cu in, Max. Pressure 5,000 psi, Diameter 1.69 in, Overall Height 4.14 in, Inlet Port Thread Size SAE #4, Hydraulic Fluid Port Dash Size -4, Pre-Charged Yes, Pre-Charged Nitrogen Pressure 1,450 psi, Usable Oil Capacity 0.53 cu in @ 5000 psi, Operating Temp. Range 32 to 180 Degrees F

Restrictions

  • Hazardous material
