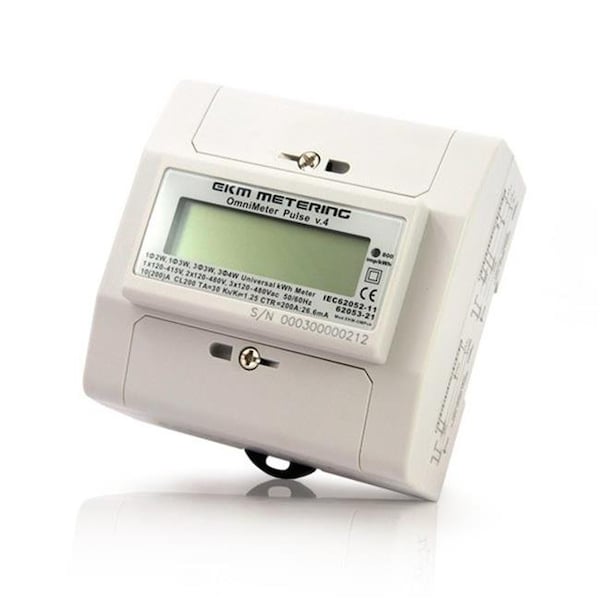

EKM Universal Electric kWh Meter - Omnimeter Pulse v.4
Mfr # Omni Pulse v.4 #27
Zoro # G804053544
Product Information
- Brand Ekm
- MFR # Omni Pulse v.4 #27
- Zoro # G804053544
- UPC # 788581421048
- Country of Origin China
- Category Sensor Accessories
Description
The Omnimeter Pulse v.4 can count the pulses from up to 3 different pulse output devices. These could be pulses from our Pulse Output Water and Gas Meters or from any other un-powered dry contact pulse output device. The real-time state of the 3 Inputs can also be polled in EKM Dash software.
The Omnimeter can be controlled via RS-485, either locally or over the internet using the EKM Dash. You can set the outputs to be high or low to drive external relays. Control lights, motors, entire buildings, demand-response, load shedding, etc. via relay control.
The Omnimeter Pulse is also a revenue-grade universal kWh meter. It can meter systems ranging from single-phase 120V 2-wire or single phase 120/240V 3-wire, 120V to 480 volts, or 3-phase 3-wire 120 to 400 volts or 3-phase 4-wire 120 to 480V, 50/60Hz , 50/60 Hz. It Supports CTs from 100A to 5000A. This meter will work with any system that is commonly used in the world.
Features- Our Most Advanced Universal Smart Meter to date, now with the ability to count pulses and control external relays!
- This submeter is truly a universal meter and can be used to meter any electrical system that is commonly in use in the world
- Meters systems from 120V, single-phase, 2-wire, to 480V, 3-phase, 4-wire, both 60Hz and 50Hz
- RS-485 communications for remote reading
- Uses our full range of external CTs
- Remote reading, EKM Dash software
- Accurate to 0.5%
- 120 volt single phase North American or 230 volt 2-wire foreign systems require 1 CT per meter
- 120/240 volt single phase requires 2 CTs per meter
- 3-phase 3-wire requires 2 CTs per meter
- 3-phase 4-wire requires 3 CTs per meter
- Meter Support: v.4 Omnimeters
- Weight: 1 lbs
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
