Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
Eaton Cutler-Hammer

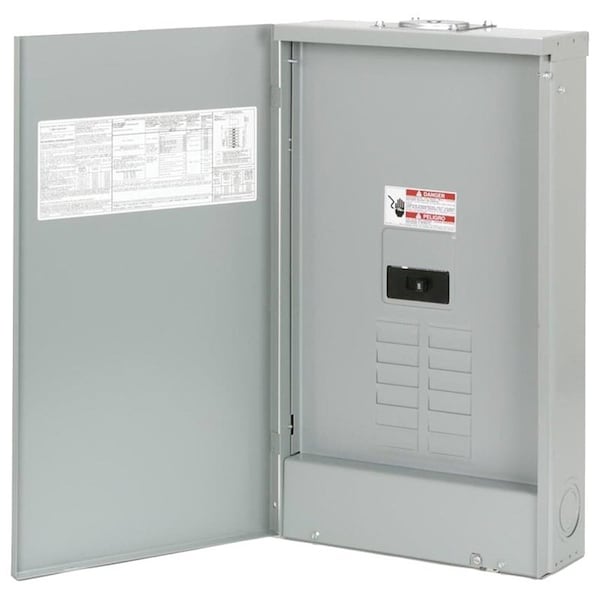

Circuit Breaker Enclosure, BRP, 8 Spaces, 200A, 120/240V AC, Main Circuit Breaker, 1 Phase
Mfr # BRP08B200RF
Zoro # G604258101
product price: $262.99
/ea
Free Shipping & Returns
$262.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Main Circuit Breaker
- Amps 200A
- Voltage 120/240V AC
- Phase 1
- Short Circuit Current Rating 25kA
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Eaton Cutler-Hammer
- MFR # BRP08B200RF
- Zoro # G604258101
- UPC # 786689059101
- Country of Origin United States
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
| Height | 5.5 in |
| Width | 14.31 in |
| Depth | 25 in |
Details
| Item | Circuit Breaker Enclosure |
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 8 |
| Amps | 200A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 25kA |
| Series | BRP |
| Included Enclosure Cover | Cover Included |
| Enclosure Material | Metallic |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Standards | UL 50 |
| Mounting Style | Combination |
| Weight | 18 lb |
| Number Of Poles | Single-pole |
| Used with | Type BR 1-inch breakers |
| Special features | Feed through lugs |
| Number Of Circuits | 16 |
| Accessories | Feed-through lugs |
| Number of wires | 3 |
Description
Rainproof galvanized steel enclosure. Single phase, 3-wire, insulated/bondable neutral, 8 (1 in) spaces, 16 circuits, 120/240 VAC. Main breaker type BWH at 25,000 AIC. Includes feed thru lugs for both phase and neutral conductors. With hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Neutral is movable to other side. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16 in x 25 in x 5-3/16 in. UL listed file E8741.
