Shop All Specialty Switches
Dwyer Instruments

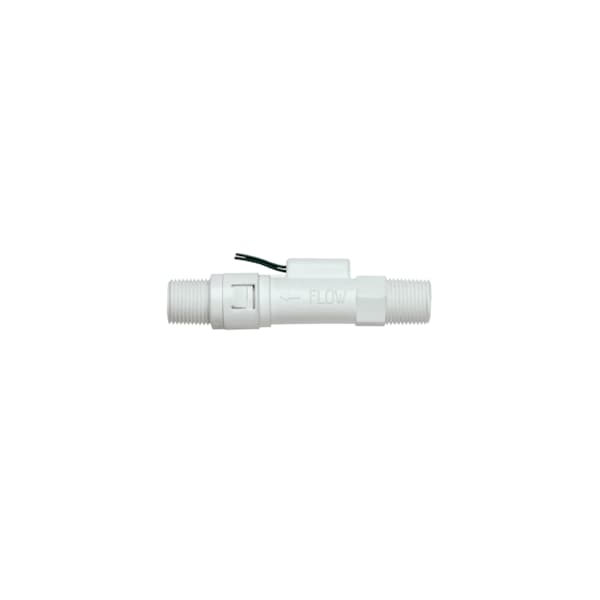

Polypropylene flow switch, actuation set point 0.25 GPM .95 LPM, 3/8in NPT.
Mfr # P3-31
Zoro # G210389190
product price: $123.99
/ea
Free Shipping & Returns
$123.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Switch Type SPST, N.O.
- Electrical Rating .08 A @ 120 VAC.
- Wetted Materials Housing: Polypropylene; Piston: PPS composite; Spring: 316SS; O-ring: Fluorocarbon.
- Pressure Limits 125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C).
- Process Connection 3/8" male NPT or 1/4" quick disconnect.
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Dwyer Instruments
- MFR # P3-31
- Zoro # G210389190
- Country of Origin United States
- Category Specialty Switches
Details
Switch Type | SPST, N.O. |
Electrical Rating | .08 A @ 120 VAC. |
Wetted Materials | Housing: Polypropylene; Piston: PPS composite; Spring: 316SS; O-ring: Fluorocarbon. |
Pressure Limits | 125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C). |
Process Connection | 3/8" male NPT or 1/4" quick disconnect. |
Temperature Limits | 0 to 212°F (-18 to 100°C). |
Features | Piston design incorporates a hermetically sealed SPST magnetic reed switch; Easy integration to existing piping with a variety of fitting options; Selectable shut off valve will stop line flow when the adapter is removed from the switch; Economical design |
Mounting Orientation | Any position. Set points shown are based on vertical, inlet down position. |
Service | Compatible liquids. |
Accuracy | 20% of set point. |
Description
Polypropylene flow switch, actuation set point 0.25 GPM (.95 LPM), 3/8" NPT.
Restrictions
