Dwyer Instruments

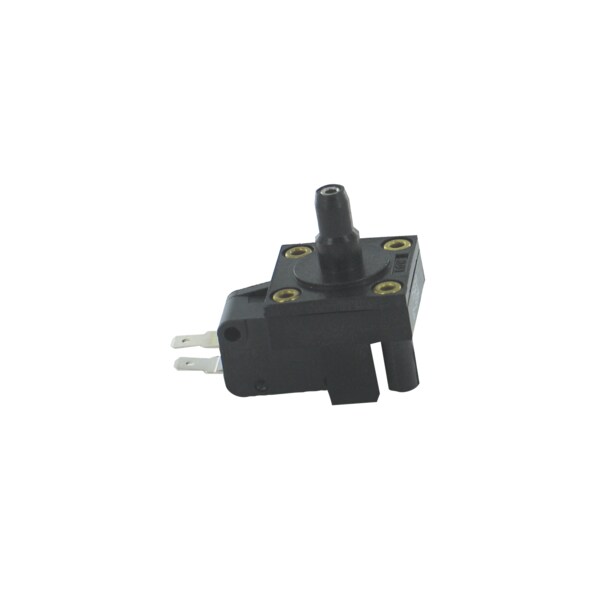

Miniature vacuum switch, min. set point 81in wc 200 mbar, max. set point 330in wc 822 mbar
Mfr # MVS-3
Zoro # G010389222
$29.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Electrical Connections Terminals - 0.187" x 0.20: spade for use with quick disconnects.
- Wetted Materials Housing: polycarbonate; Diaphragm: polyurethane.
- Mounting Use #2 screws through eyelets.
- Service Air or compatible fluids on "high side".
- Electrical Rating Range 3 to 8" w.c.: 3 A, 125/250 VAC; Range 9 to 80" w.c.: 10 A, 125/250 VAC; Range 81 to 330" w.c.: 15 A, 125/250 VAC.
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Dwyer Instruments
- MFR # MVS-3
- Zoro # G010389222
- Country of Origin United States
- Category Specialty Switches
Details
Electrical Connections | Terminals - 0.187" x 0.20: spade for use with quick disconnects. |
Wetted Materials | Housing: polycarbonate; Diaphragm: polyurethane. |
Mounting | Use #2 screws through eyelets. |
Service | Air or compatible fluids on "high side". |
Electrical Rating | Range 3 to 8" w.c.: 3 A, 125/250 VAC; Range 9 to 80" w.c.: 10 A, 125/250 VAC; Range 81 to 330" w.c.: 15 A, 125/250 VAC. |
Temperature Limits | 40 to 150°F (4 to 66°C). |
Agency Approvals | cULus. |
Switch Type | SPDT normally open or normally closed. |
Pressure Limits | Up to maximum range. |
Process Connections | Models MVS-1 to MVS-3: Smooth port 0.25" diameter; Models MVS-4 to MVS-6: 1/8" male NPT. |
Repeatability | ±20%. |
Description
Miniature vacuum switch, min. set point 81" w.c. (200 mbar), max. set point 330" w.c. (822 mbar), 1/4" smooth port process connection.
