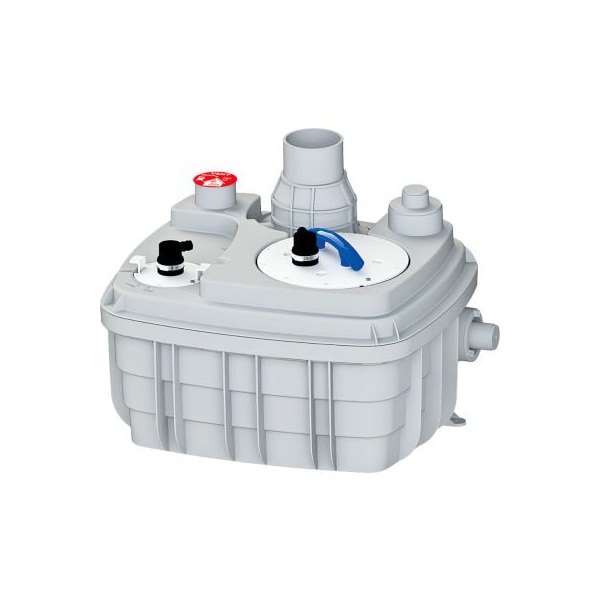

Saniflo Sanicubic 1 VX Simplex Vortex System, 1 HP, 240V

Features: vortex system designed to handle sanitary products and large diameter solids rated ip68 with external control and alarm easy-access service panels the sanicubic 1 vx is a 1.5 hp heavy duty simplex vortex system used to pump away waste water from several bathrooms and fixtures from an entire building structure. This system is able to discharge the waste up to 36 feet vertical using a 2" diameter pipe or up to 20 feet when discharging through a 4" pipe. It incorporates a vortex system which is ideal for uncontrolled environments in both residential and commercial applications (i.e.. Rental unit, offices, warehouses, etc.). The sanicubic 1 vx is designed to handle sanitary products that may have been flushed down the toilet; such may consist of condoms, sanitary napkins, q-tips, dental floss, etc. As well as large diameter solids. this system consists of a 1.5-hp motor housed inside a compact but highly durable plastic enclosure. Incorporates a vortex impeller capable of handling up to 2" solids. the sanicubic 1 vx operation is as simple as the installation. The effluent enters the pump through one of three different inlets one on either side of the unit at the bottom and one on top. The inlets can accommodate 1-1/2" or 4" diameter pipes. As soon as the wastewater level reaches the trigger point, the pumping system activates. The effluent is then pumped out through either a 2" or 4" diameter rigid pipe connected on the top of the pump. Maximum pumping distances are 36 ft (2") or 20 ft (4") vertically and/or 328 ft horizontally (2") or 1640 ft horizontally (4"). the inside of the sanicubic 1 vx comprises of a couple of pressure switches and a circuit board assembly, which starts and stops the unit, a powerful motor, which drive the vortex impeller and the pump. The motor is sealed for life in an oil filled enclosure. A common spindle/shaft drives the impeller. The moving parts theref
