  9. Snap Patch Panel W/3 Sm Lc/Lc
Shop All Voice & Data Patch Panels
Dinspace

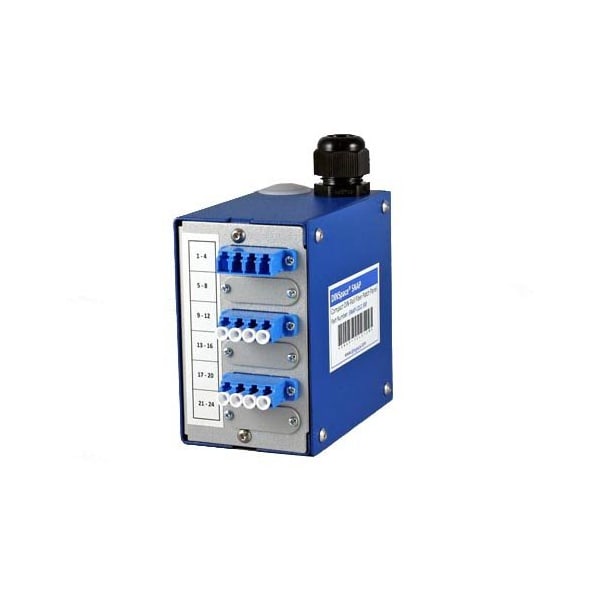

Snap Patch Panel W/3 Sm Lc/Lc

product price: $322.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards UL Listed 1863 (Communications-Circuit Accessories), CE
  • Operating Temperature -40 to +75 deg. C
  • Cable Glands Plastic with max. cable diameter of 12mm (14mm max. also available)
  • Plug/Unplug Durability 1000 times
  • Dimensions with adapters installed (H x D x W) 6.25" x 5.125" x 2.75"
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dimensions with adapters installed (H x D x W) 6.25" x 5.125" x 2.75"

Details

Standards UL Listed 1863 (Communications-Circuit Accessories), CE
Operating Temperature -40 to +75 deg. C
Cable Glands Plastic with max. cable diameter of 12mm (14mm max. also available)
Plug/Unplug Durability 1000 times
Insertion Loss ≤.3dB (Multimode), ≤.2dB (Singlemode)
Protection class IP20
Relative humidity (non-condensing) 10% to 95%
Storage/transport temperature -40 to +80 deg. C
Fiber optic adapters UL 90 V-0 Thermoplastic
Patch panel body and faceplate 18 gauge powder-coat painted steel
Mounting Options Rear DIN-Rail, Side DIN-Rail or surface mount

Restrictions
