Shop All Gate Operators & Accessories
Diablo Controls

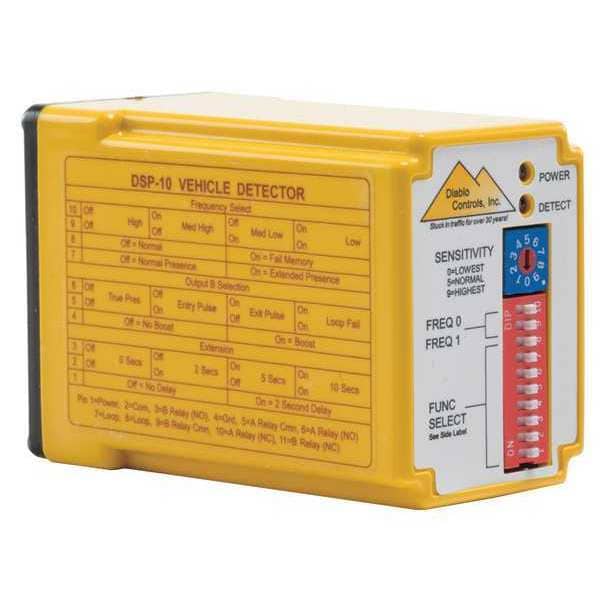

Vehicle Detector, 20 to 2000 MHz
Mfr # DSP-10 117
Zoro # G0022961
product price: $218.99
/ea
Free Shipping & Returns
$218.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Includes Relay
- Operating Temp. Range -35 Degrees to 165 Degrees F
- Contact Rating 1A @ 110V AC
- Loop Impedance 20 to 2000 MHz
- Detection Range Variable
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Diablo Controls
- MFR # DSP-10 117
- Zoro # G0022961
- Country of Origin China
- Category Gate Operators & Accessories
Dimensions
Overall Height | 2 1/2 in |
Overall Width | 2 in |
Overall Length | 4 in |
Details
Item | Vehicle Detector |
Includes | Relay |
Operating Temp. Range | -35 Degrees to 165 Degrees F |
Contact Rating | 1A @ 110V AC |
Loop Impedance | 20 to 2000 MHz |
Detection Range | Variable |
Power Required | 110V AC |
Features | 11 Pin Plug-In |
Sensitivity | Variable |
Number of Channels | 1 |
Minimum Operating Temperature | -35 Degrees F |
Maximum Loop Inductance | 2,000 uH |
Maximum Operating Temperature | 165 Degrees F |
Minimum Loop Inductance | 20 uH |
Description
Vehicle Detector, Includes Relay, Number of Channels 1, Operating Voltage 117V AC, Minimum Loop Inductance 20 uH, Maximum Loop Inductance 2,000 uH, Features 11 Pin Plug-In, Overall Height 2 1/2 in, Overall Length 4 in, Overall Width 2 in, Minimum Operating Temperature -35 Degrees F, Maximum Operating Temperature 165 Degrees F
