  11. Toggle Clamp, Vert Hold, 1400 Lb, H 9.08
Shop All Toggle & Latch Clamps
De-Sta-Co

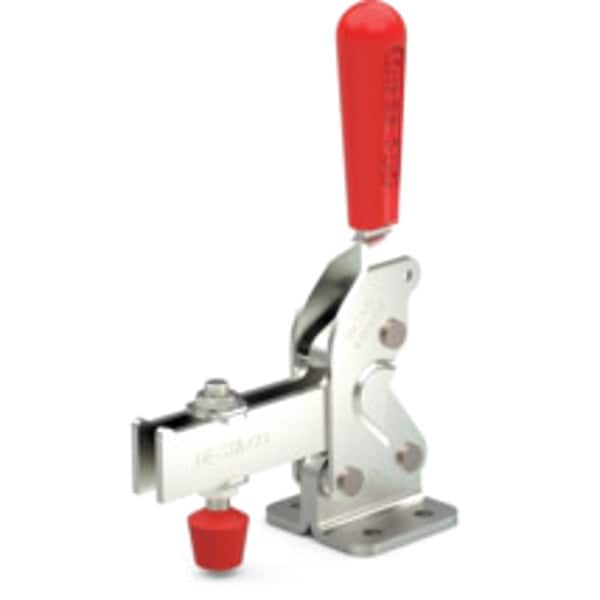

Toggle Clamp, Vert Hold, 1400 Lb, H 9.08

product price: $34.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Vertical Handle Hold Down
  • Holding Capacity (Lb.) 1,400
  • Overall Height (In.) 9.08 in
  • Body Material Steel
  • Overall Length (In.) 6.09 in
See all product information

Product Information

Dimensions

Overall Height (In.) 9.08 in
Overall Length (In.) 6.09 in
Height Under Arm (In.) 1.7 in
Dia. (In.) 0.34 in
Thread Size M10
Overall Depth 9.08 in
Arm Length 3.55 in
Height Under Arm 1.7 in
Spindle Thread Size M10
Overall Width 7.51 in
Overall Length 6.09 in

Details

Item Toggle Clamp
Type Vertical Handle Hold Down
Holding Capacity (Lb.) 1,400
Body Material Steel
Spindle Material Neoprene
Handle 78 Degrees
Arm Open
Base Mounting Centers (In.) 1.25 x 1.78
Spindle Flat Cushion Neoprene
Includes Spindle (235106), Spindle (240208-M)
Application Assembly, Checking Fixtures, Clamping, Closures, Welding, Woodworking
Mounting Holes Center to Center - Short Side 1.25 in
Base Mounting Style Flange
Holding Capacity - Maximum 1,400 lbf
Clamp Arm Opening Angle 78 Degrees
Includes Locking Handle No
Mounting Holes Center to Center - Long Side 1.78 in
Arm Style U-Bar
Accommodates Workpiece Variation No
Handle Orientation Vertical
Handle Color Red
Tip Material Neoprene

Description

Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 1,400 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 78 Degrees , Arm Length 3.55 in, Height Under Arm 1.7 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Welding, Woodworking, Body Material Steel, Handle Color Red, Includes Spindle (235106), Spindle (240208-M)
