De-Sta-Co

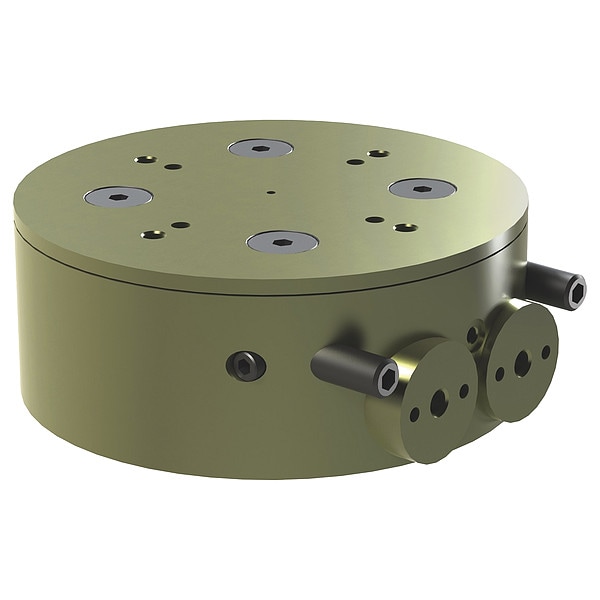

Rotary Actuator, 90 Deg Rotation

product price: $1,732.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 1.313 in
  • Length 3.375 in
  • Width 3.28 in
  • Maximum Pressure 100 psi
  • Operating Temp. Range -30 to 180 Degrees F
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 1.313 in
Length 3.375 in
Width 3.28 in
Model Size RR-28M
Port Size 2 x M5
Overall Height 33.3 mm
Overall Length 85.73 mm
Shaft Diameter 85.73 mm
Shaft Length 3.18 mm
Bore Diameter 19.1 mm
Inlet Size 5/16 in
Overall Width 85.7 mm

Description

Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 2.5 N-m, Rotation Angle 90 Degrees , Bore Diameter 19.1 mm, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 85.73 mm, Shaft Length 3.18 mm, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.65 kg, Maximum Operating Temperature 80 Degrees C, Minimum Operating Pressure 0.21 MPa, Minimum Operating Temperature -35 Degrees C, For Fluid Type Air, System of Measurement Metric
