De-Sta-Co

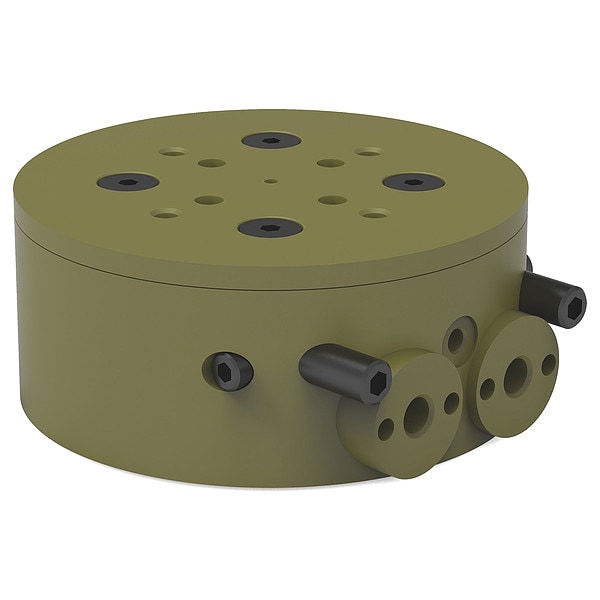

Rotary Actuator, 90 Deg Rotation

product price: $1,690.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width 2.42 in
  • Length 2.25 in
  • Height 0.969 in
  • Operating Temp. Range -30 to 180 Degrees F
  • Torque (In.-Lbs.) 0.7 in-lb
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 2.42 in
Length 2.25 in
Height 0.969 in
Model Size RR-18
Port Size 2 x M5
Bore Diameter 1/2 in
Overall Length 2 1/4 in
Shaft Diameter 2 1/4 in
Overall Height 1 in
Inlet Size 5/16 in
Shaft Length 1/8 in
Overall Width 2 1/4 in

Description

Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 6.5 in-lb, Rotation Angle 90 Degrees , Bore Diameter 1/2 in, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 2 1/4 in, Shaft Length 1/8 in, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.48 lb, Maximum Operating Temperature 180 Degrees F, Minimum Operating Pressure 0.21 MPa, Minimum Operating Temperature -30 Degrees F, For Fluid Type Air, System of Measurement Inch
