De-Sta-Co

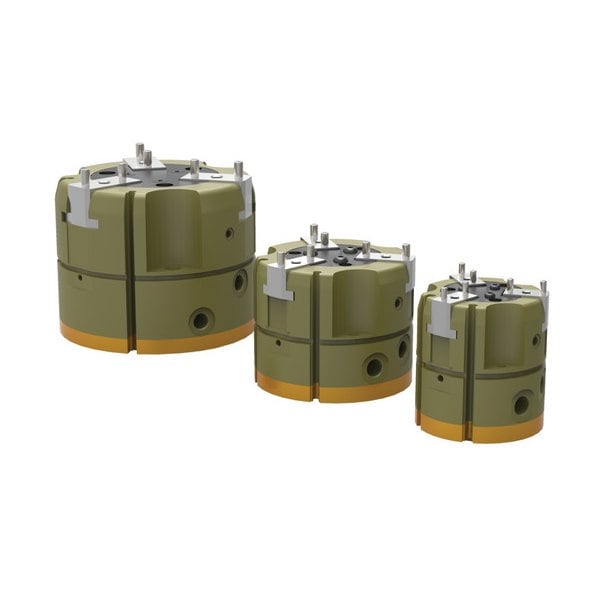

Parallel Gripper, Long Stroke
Mfr # REP-83-P-C
Zoro # G3142800
product price: $2,250.99
/ea
Free Shipping & Returns
$2,250.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Height 3 1/8 in
- Overall Width 3 1/8 in
- Weight 1.98 lb
- Product Type Parallel Gripper,Long Stroke
- IP Rating IP55
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand De-Sta-Co
- MFR # REP-83-P-C
- Zoro # G3142800
- Country of Origin France
- Category Cylinder Position Sensors
Dimensions
| Overall Height | 3 1/8 in |
| Overall Width | 3 1/8 in |
| Stroke Length | 3/4 in |
| Maximum Finger/Jaw Length | 4 in |
| Inlet Size | 1/8 in |
Details
| Item | Parallel Gripper,Long Stroke |
| Weight | 1.98 lb |
| Product Type | Parallel Gripper,Long Stroke |
| IP Rating | IP55 |
| Operation Type | Synchronous |
| Seal Material | Buna-N |
| Minimum Operating Temperature | -30 Degrees F |
| Displacement | 34.9 cc |
| Total Rated Grip Force @ 100 psi | 938.57 N |
| Minimum Operating Pressure | 30 psi |
| Maximum Operating Temperature | 180 Degrees F |
| Air Inlet Type | G |
| Repeatability | +/-0.0008 in |
| Maximum Actuation Time | 0.18 sec |
| Maximum Operating Pressure | 100 psi |
| System of Measurement | Inch |
| Series | REP |
| Accuracy | +/-0.002 in |
Description
Parallel Gripper,Long Stroke, Series REP, Stroke Length 3/4 in, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 30 psi, Overall Width 3 1/8 in, Overall Height 3 1/8 in, Inlet Size 1/8 in, Air Inlet Type G, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Weight 1.98 lb, System of Measurement Inch, Total Rated Grip Force @ 100 psi 938.57 N, IP Rating IP55, Seal Material Buna-N, Displacement 34.9 cc, Accuracy +/-0.002 in
