Shop All Clamp Accessories
De-Sta-Co

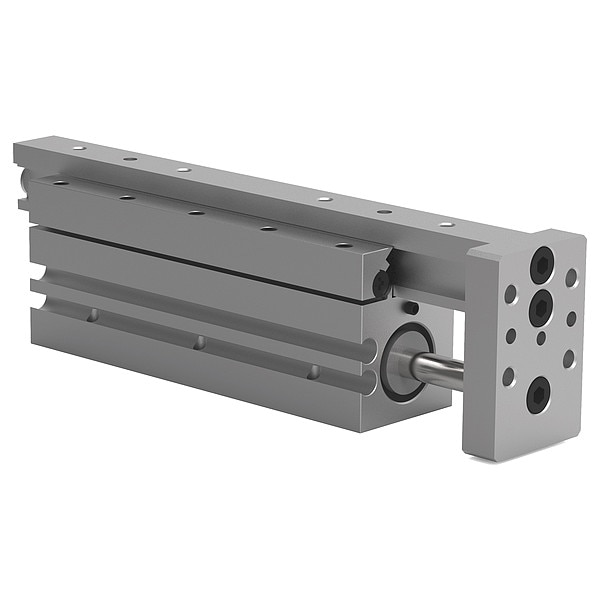

Mini Power Slide, 2In Stroke
Mfr # MPS-1M-4
Zoro # G3187996
product price: $842.99
/ea
Free Shipping & Returns
$842.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Size 1 M
- Minimum Operating Temperature -30 Degrees F
- Maximum Stroke 51 mm
- Series MPS
- Actuation Time 0.14 sec
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand De-Sta-Co
- MFR # MPS-1M-4
- Zoro # G3187996
- Country of Origin United States
- Category Clamp Accessories
Dimensions
| Size | 1 M |
| Cylinder Bore Diameter | 11.1 mm |
Details
| Item | Mini Power Slide |
| Minimum Operating Temperature | -30 Degrees F |
| Maximum Stroke | 51 mm |
| Series | MPS |
| Actuation Time | 0.14 sec |
| Maximum Payload | 0.59 kg |
| Seal Material | Buna-N |
| Maximum Operating Temperature | 180 Degrees F |
| Minimum Pressure | 20 psi |
| Maximum Pressure | 100 psi |
| Thrust Force at Maximum Pressure | 67 N |
| Maximum Actuation Time | 0.14 sec |
| Minimum Operating Pressure | 20 psi |
| Accuracy | +/-0.003 in |
| Thrust Force @ 100 psi | 67 N |
| Repeatability | +/-0.03 in |
| Maximum Operating Pressure | 100 psi |
| System of Measurement | Metric |
Description
Mini Power Slide, Maximum Stroke 51 mm, Cylinder Bore Diameter 11.1 mm, Maximum Payload 0.59 kg, Series MPS, Thrust Force @ 100 psi 67 N, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.14 sec, System of Measurement Metric
