De-Sta-Co

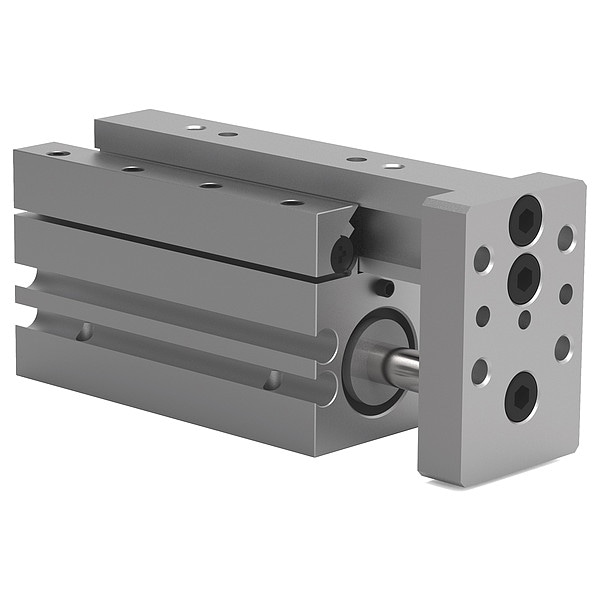

Mini Power Slide 1In Stroke

product price: $716.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Size 1 M
  • Minimum Pressure 20 psi
  • Maximum Payload 0.32 kg
  • Maximum Stroke 25 mm
  • Maximum Pressure 100 psi
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Size 1 M
Cylinder Bore Diameter 11.1 mm

Details

Item Mini Power Slide
Minimum Pressure 20 psi
Maximum Payload 0.32 kg
Maximum Stroke 25 mm
Maximum Pressure 100 psi
Actuation Time 0.11 sec
Thrust Force at Maximum Pressure 67 N
Maximum Operating Temperature 180 Degrees F
Seal Material Buna-N
Series MPS
Minimum Operating Temperature -30 Degrees F
Thrust Force @ 100 psi 67 N
Minimum Operating Pressure 20 psi
Maximum Operating Pressure 100 psi
System of Measurement Metric
Accuracy +/-0.003 in
Maximum Actuation Time 0.11 sec
Repeatability +/-0.03 in

Description

Mini Power Slide, Maximum Stroke 25 mm, Cylinder Bore Diameter 11.1 mm, Maximum Payload 0.32 kg, Series MPS, Thrust Force @ 100 psi 67 N, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.11 sec, System of Measurement Metric
