De-Sta-Co

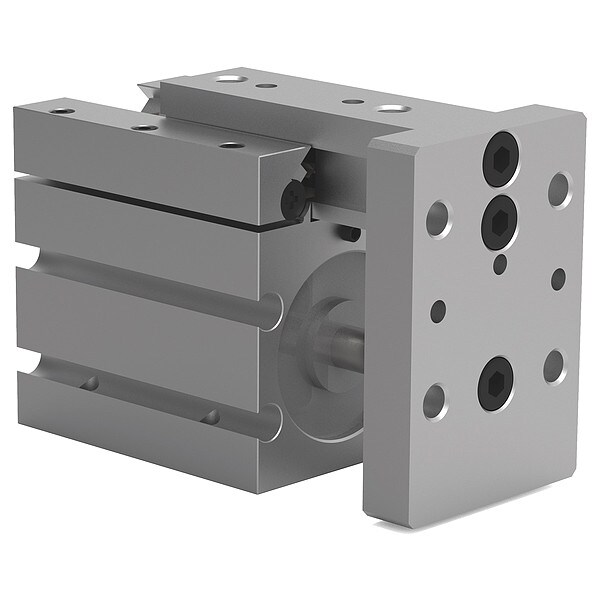

Mini Power Slide, 1/2In Stroke
Mfr # MPS-2-1
Zoro # G0893518
product price: $944.99
/ea
Free Shipping & Returns
$944.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Maximum Pressure 100 psi
- Minimum Pressure 20 psi
- Maximum Operating Temperature 180 Degrees F
- Size 2 M
- Minimum Operating Temperature -30 Degrees F
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand De-Sta-Co
- MFR # MPS-2-1
- Zoro # G0893518
- Country of Origin United States
- Category Clamp Accessories
Dimensions
| Size | 2 M |
| Cylinder Bore Diameter | 3/4 in |
Details
| Item | Mini Power Slide |
| Maximum Pressure | 100 psi |
| Minimum Pressure | 20 psi |
| Maximum Operating Temperature | 180 Degrees F |
| Minimum Operating Temperature | -30 Degrees F |
| Maximum Stroke | 1/2 in |
| Seal Material | Buna-N |
| Series | MPS |
| Maximum Actuation Time | 0.12 sec |
| Maximum Payload | 0.5 lb |
| Minimum Operating Pressure | 20 psi |
| Repeatability | +/-0.01 in |
| Thrust Force @ 100 psi | 44 lbf |
| Accuracy | +/-0.0001 in |
| Maximum Operating Pressure | 100 psi |
| System of Measurement | Inch |
Description
Mini Power Slide, Maximum Stroke 1/2 in, Cylinder Bore Diameter 3/4 in, Maximum Payload 0.5 lb, Series MPS, Thrust Force @ 100 psi 44 lbf, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.12 sec, System of Measurement Inch
