Shop All Pneumatic Grippers
De-Sta-Co

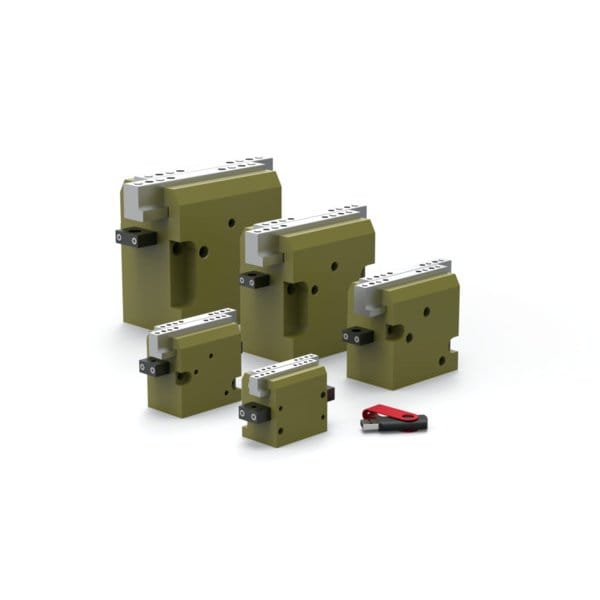

Jaw Parallel Gripper 2

product price: $1,918.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 4 3/4 in
  • Overall Width 2 1/8 in
  • Weight 2.87 lb
  • Overall Height 3 1/2 in
  • Product Type Jaw Parallel Gripper 2
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length 4 3/4 in
Overall Width 2 1/8 in
Overall Height 3 1/2 in
Stroke Length 1 5/8 in
Maximum Finger/Jaw Length 2 1/2 in
Inlet Size M5

Details

Item Jaw Parallel Gripper 2
Weight 2.87 lb
Product Type Jaw Parallel Gripper 2
System of Measurement Inch
Finger Mounting Side, Top
Maximum Operating Temperature 180 Degrees F
Seal Material Buna-N
Series DGC
Maximum Operating Pressure 100 psi
Minimum Operating Pressure 45 psi
Maximum Actuation Time 0.35 sec
Total Rated Grip Force @ 100 psi 796.23 N
IP Rating IP54
Displacement 61.1 cc
Minimum Operating Temperature -30 Degrees F
Repeatability +/-0.0005 in
Accuracy +/-0.0009 in

Description

Jaw Parallel Gripper 2, Series DGC, Stroke Length 1 5/8 in, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 45 psi, Overall Length 4 3/4 in, Overall Width 2 1/8 in, Overall Height 3 1/2 in, Inlet Size M5, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Weight 2.87 lb, System of Measurement Inch, Total Rated Grip Force @ 100 psi 796.23 N, IP Rating IP54, Seal Material Buna-N, Displacement 61.1 cc, Accuracy +/-0.0009 in
