De-Sta-Co

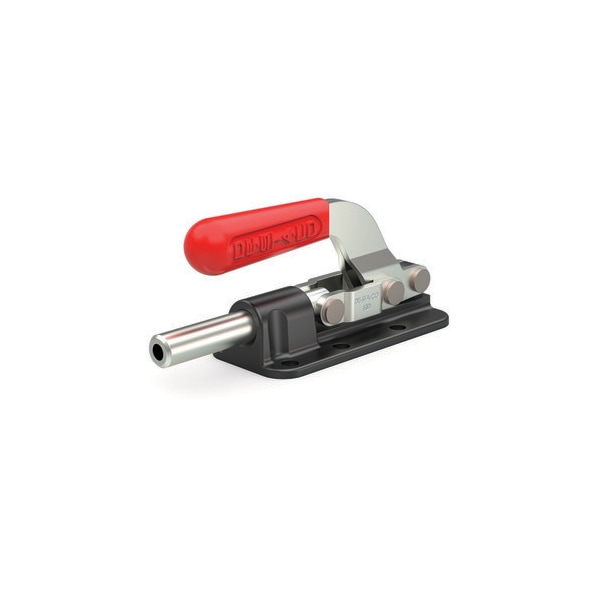

Clamp Straight-Line Action 630-M

product price: $87.85
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Metalworking, Welding, Assembly And Light Machining Fixture
  • Overall Length 7.06 in
  • Overall Width 2.25 in
  • Handle Orientation Horizontal
  • Exerted Force : Applied Force - Pulling 23:1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length 7.06 in
Overall Width 2.25 in
Plunger Height 0.81 in
Arm Length 2.03 in
Tip Diameter 11/16 in
Spindle Thread Size M10
Overall Depth 3.05 in
Fastener Thread Size 5/16 in
Height Under Arm 0.81 in

Description

Clamp Straight-Line Action 630-M, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 2,500 lbf, Plunger Travel 2 in, Plunger Height 0.81 in, Plunger Thread M10, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 2.03 in, Body Material Steel, Clamping Force 2,500 lb
