Shop All DC Washdown Motors
Dayton

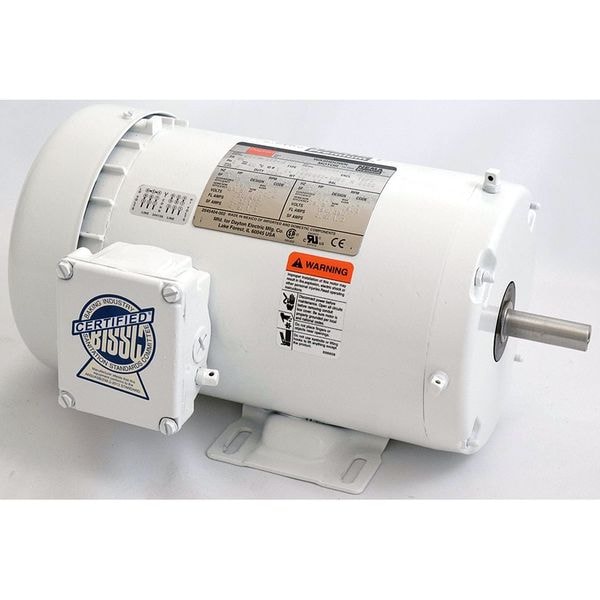

Washdown Motor, 3 Ph, TEFC, 3/4 HP, 1725 rpm
Mfr # 2DAK8
Zoro # G2823737
original price:
$742.92
48% off
Free Shipping & Returns
$384.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design 3-Phase
- Phase Three
- RPM Range 1,701-1,800
- Voltage 230/460V AC
- Frame 56
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Dayton
- MFR # 2DAK8
- Zoro # G2823737
- UPC # 190735218372
- Country of Origin Mexico
- Category DC Washdown Motors
Dimensions
Length Less Shaft | 11 1/2 in |
Overall Length | 13 7/16 in |
Shaft Length | 1 7/8 in |
Shaft Dia. | 5/8 in |
Body Dia. | 6.94 in |
Description
Washdown Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,745, Voltage 230/460V AC, Full Load Amps 2.3/1.2 A, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel
