Dayton

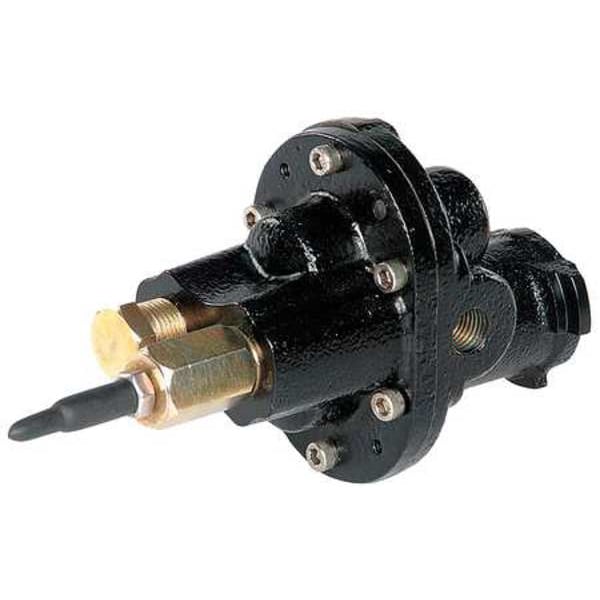

Rotary Gear Pump Head, 1/4 In., 1/3 HP

product price: $192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Port Size 1/4 in
  • Shaft Dia. 0.5 in
  • Seal Mechanical Seal Carbon/Ceramic with Viton
  • GPM @ 40 PSI 1.9 gpm
  • Suction Lift 3.2 ft
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Port Size 1/4 in
Shaft Dia. 0.5 in
Length 6 9/16 in
Width 2 1/2 in
Height 3 5/8 in
Overall Width 2.5 in
Overall Length 6.6 in
Overall Height 3.6 in
Connection Size 1/4 in
Shaft Outer Diameter 1/2 in

Description

Rotary Gear Pump Head, Body Material Cast Iron, Compatible Motor Frame Carbonator Mount, Viscosity - Maximum 550 SUS, Suction Lift - Maximum 3.2 ft, Operating Pressure - Maximum 100 psi, Operating Temperature - Maximum 210 Degrees F, Operating Temperature - Minimum -20 Degrees F, Required Horsepower 1/3 hp, Connection Size 1/4 in, Connection Type NPT, Shaft Outer Diameter 1/2 in, Flow Rate @ 100 psi 1.6 gpm, Seal Type Mechanical, Seal Material Carbon, Ceramic, Stainless Steel, Viton
