Dayton

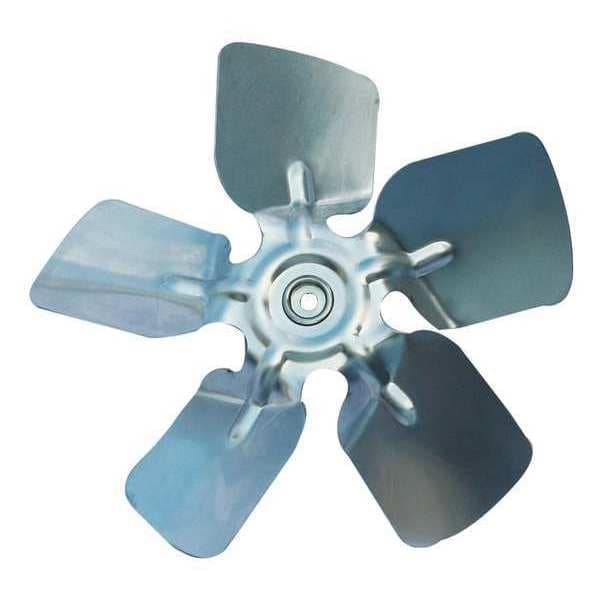

Replacement Propeller

product price: $26.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Propeller Dia. (In.) 10 in
  • Bore Dia. (In.) 5/16 in
  • Number of Blades 5
  • Required Motor HP 1/25
  • RPM Low 1,550
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Propeller Dia. (In.) 10 in
Bore Dia. (In.) 5/16 in
Blade Width (In.) 10 in
Blade Height (In.) 10 in

Details

Number of Blades 5
Required Motor HP 1/25
RPM Low 1,550
Blade Material Stamped Aluminum
Keyway (In.) 5/16
Required HP @ Higher RPM 1/25 hp
RPM High 1,550
Rotation CW
Max. RPM 1550
Required HP @ Lower RPM 1/25 hp
Remarks Metric Bore On Propellers, Not a True Traction.
Item Replacement Propeller
For Use With 1HKL3,1HLA1
Number of Set Screws 1
Type Direct

Description

Replacement Propeller, Direct, Propeller Dia. (In.) 10 in, Bore Dia. (In.) 5/16 in, Number of Blades 5, Blade Material Stamped Aluminum, Keyway (In.) 5/16, Number of Set Screws 1, Rotation CW, Required Motor HP 1/25, Required HP @ Higher RPM 1/25 hp, Required HP @ Lower RPM 1/25 hp, RPM Low 1,550 RPM, RPM High 1,550 RPM, Max. RPM 1550, Blade Height (In.) 10 in, Blade Width (In.) 10 in, Remarks Metric Bore On Propellers, Not a True Traction., For Use With 1HKL3,1HLA1
