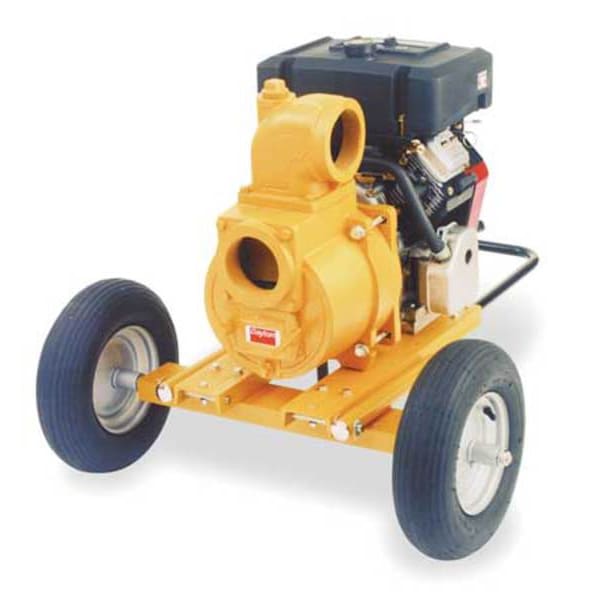

Pump, Trash, 13 HP

Mfr # 3P653
Zoro # G1525115

$4,533.99

Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Seal Material Buna N, Silicon Carbide
GPM of Water @ 20 Ft. of Head 600
Impeller Material Cast Iron
Height 31-1/2"
Engine Size 389 cc

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 3P653
Zoro # G1525115
UPC #
190735293041
Country of Origin United States
Category Engine Driven Pumps

Dimensions

Height	31-1/2"
Engine Size	389 cc
Length	44-1/2"
Width	37-1/2"
Inlet Dia.	4 in
Max. Diameter Solids	2 in
Overall Width	37 1/2 in
Discharge Dia.	4 in
Overall Length	44 1/2 in
Overall Height	31 1/2 in

Details

Seal Material	Buna N, Silicon Carbide
GPM of Water @ 20 Ft. of Head	600
Impeller Material	Cast Iron
GPM of Water @ 50 Ft. of Head	465
Max. Pressure	52 psi
Mechanical Seal	Silicon Carbide, Viton
Engine RPM	3600
GPM of Water @ 60 Ft. of Head	325
Check Valve	Buna N
Includes	Cast Iron Sleeves, Low Oil Alert, Pneumatic Ball Bearing Wheels and Brake Feet, Suction Strainer, Two Cast Iron Pipe Nipple
Casing Adapter	Aluminum
Tank Capacity	2.25 gal
Agency Compliance	Meets California Emission Codes
Roll Bar Frame	None
Sensor Type	None
GPM of Water @ 30 Ft. of Head	520
Temp. Range	40 Degrees to 180 Degrees F
GPM of Water @ 100 Ft. of Head	170
Inlet	4 in MNPT
GPM of Water @ 80 Ft. of Head	313
HP	13 hp
Engine Brand	Honda GX390 OHV E-Start
Max. Suction Lift	20 ft
Solids Handling Capacity	2"
GPM of Water @ 90 Ft. of Head	120
GPM of Water @ 70 Ft. of Head	350
Outlet	4" NPT
Volute/Wear Plate	Cast Iron
Engine/Motor Type	Gas
Material of Construction	Aluminum
Number of Impellers	1
GPM of Water @ 40 Ft. of Head	520
GPM of Water @ 10 Ft. of Head	530
Max. Head	102 ft
Application	Trash
Item	Engine Driven Utility Pump
Impeller Type	Trash
Maximum Discharge Pressure	52 psi
Inlet Standard	NPT
Flow Rate @ 10 Ft. of Head	530 gpm
Discharge Gender	Male
Frame Material	Steel
RPM	3,600 RPM
Max. Liquid Temp.	180 Degrees F
Flow Rate @ 40 Ft. of Head	480 gpm
Impeller Design	Semi-Open
Flow Rate @ 20 Ft. of Head	505 gpm
Flow Rate @ 80 Ft. of Head	180 gpm
Discharge	4 in MNPT
Body Material	Aluminum
Pump Mechanism	Centrifugal
Flow Rate @ 60 Ft. of Head	325 gpm
Discharge Standard	NPT
Power Source	Gas
Inlet Gender	Male
Volute Material	Cast Iron
Frame Design - Pumps	Wheeled Transport Dolly

Description

Engine Driven Utility Pump, Engine Size 389 cc, HP 13 hp, Tank Capacity 2.25 gal, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron, Seal Material Buna N, Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 530 gpm, Flow Rate @ 20 Ft. of Head 505 gpm, Flow Rate @ 40 Ft. of Head 480 gpm, Flow Rate @ 60 Ft. of Head 325 gpm, Flow Rate @ 80 Ft. of Head 180 gpm, Max. Head 102 ft, Max. Suction Lift 20 ft, Frame Design - Pumps Wheeled Transport Dolly
